Glaval Concorde

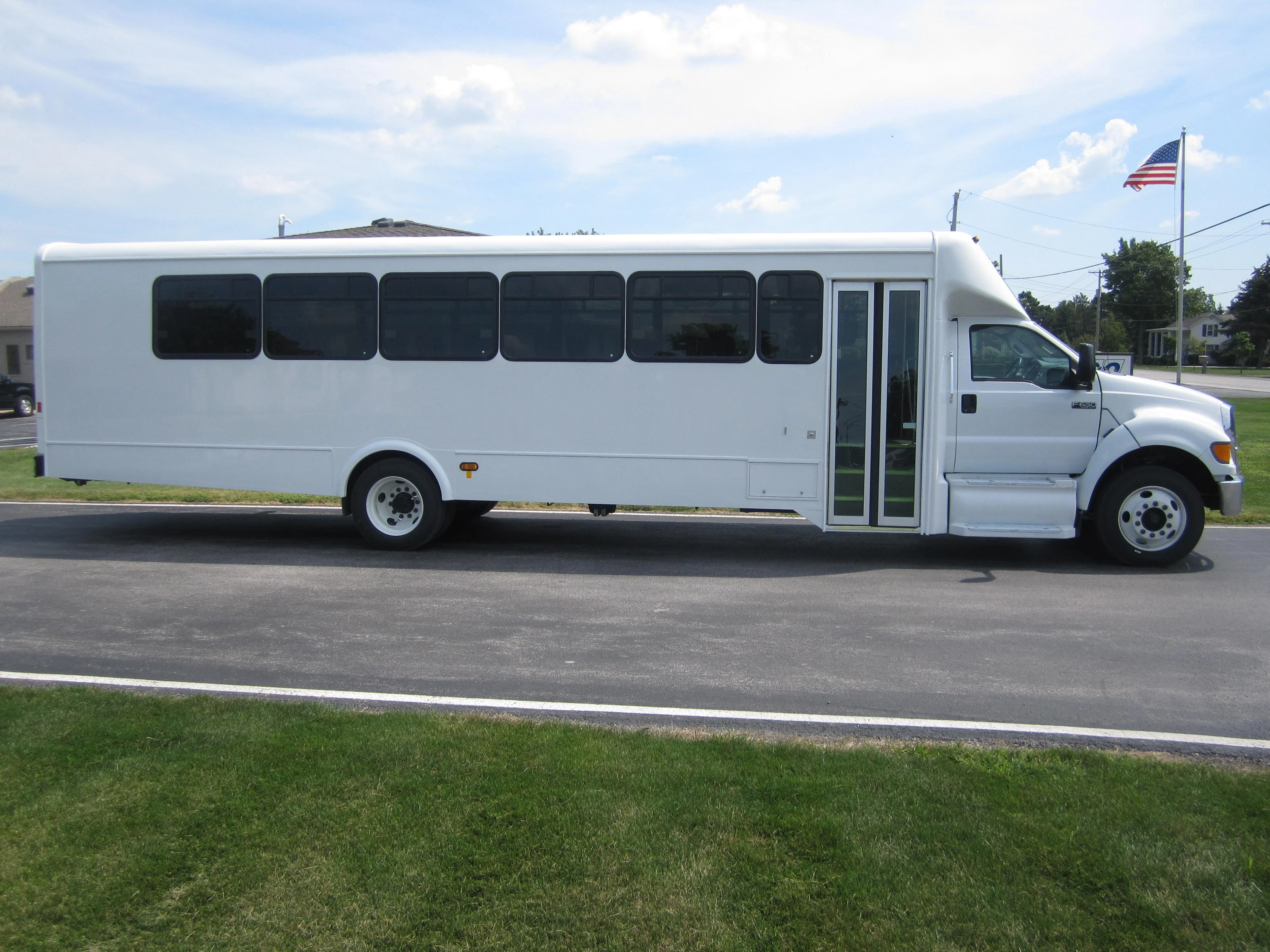

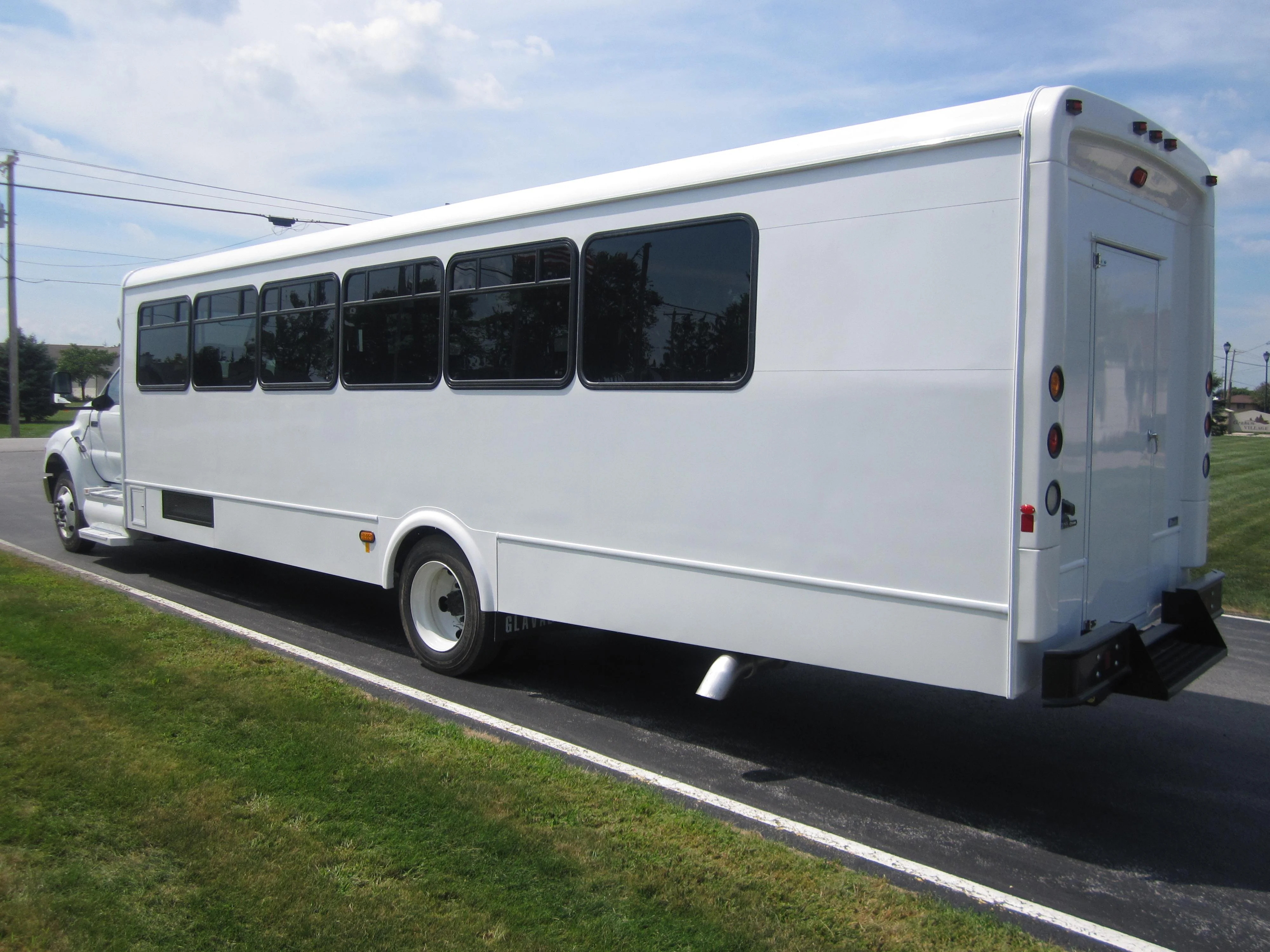

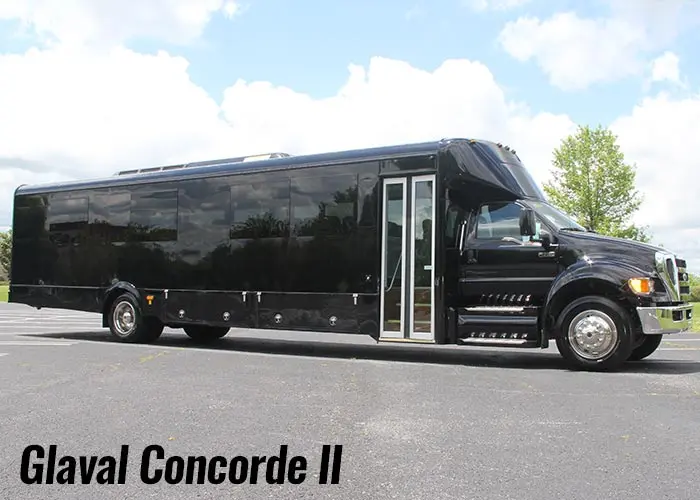

As the flagship of the Glaval lineup, the Glaval Concorde II captivates even the most discerning bus buyers. Constructed on the robust Ford F-650 or F-750 chassis, this medium-duty bus offers customizable configurations to accommodate up to 50 passengers, including the driver. Equipped with a powerful Cummins 6.7L diesel engine and an Allison transmission, the Concorde II delivers unparalleled reliability and performance, comparable only to premium over-the-road coaches.

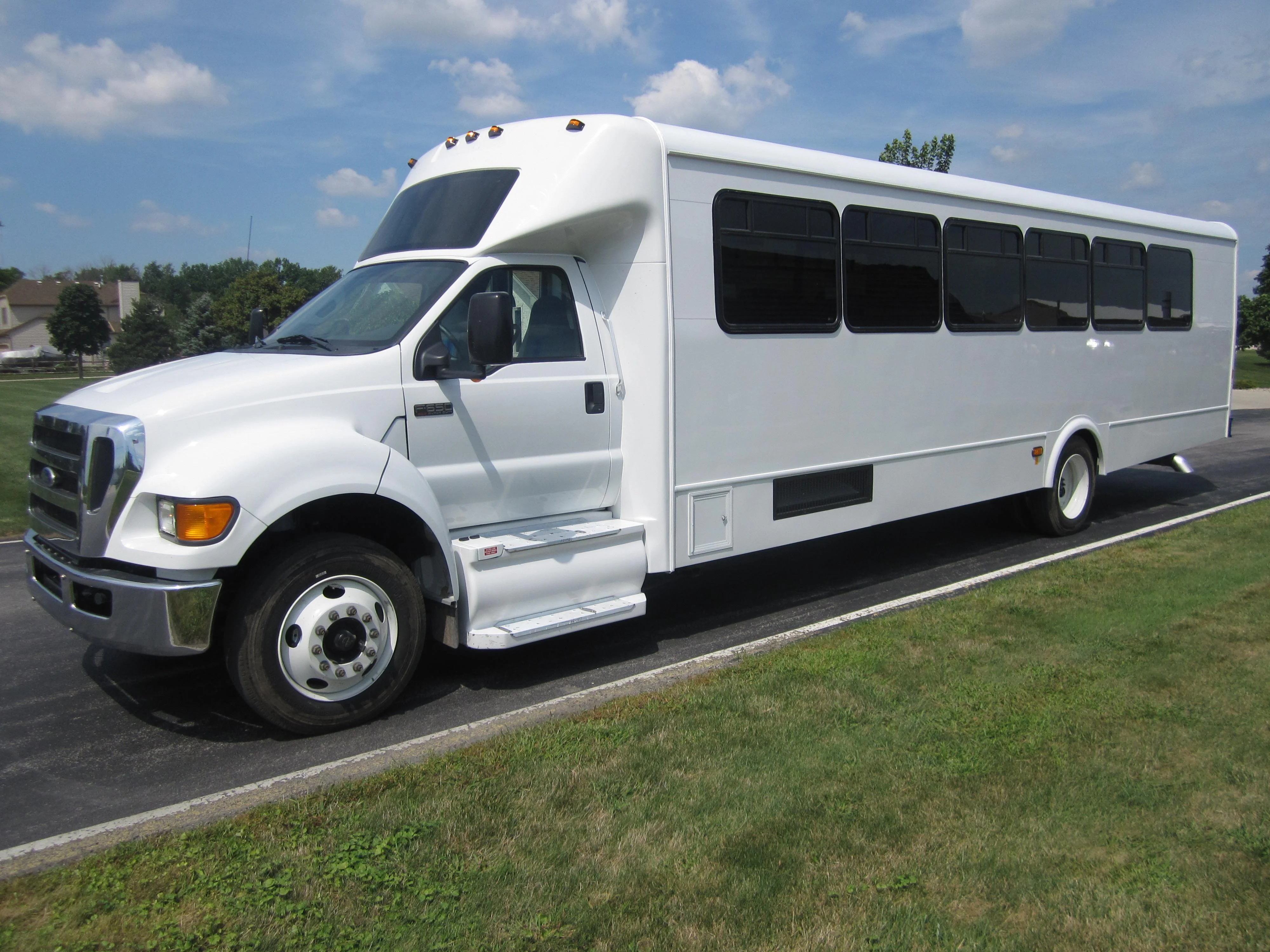

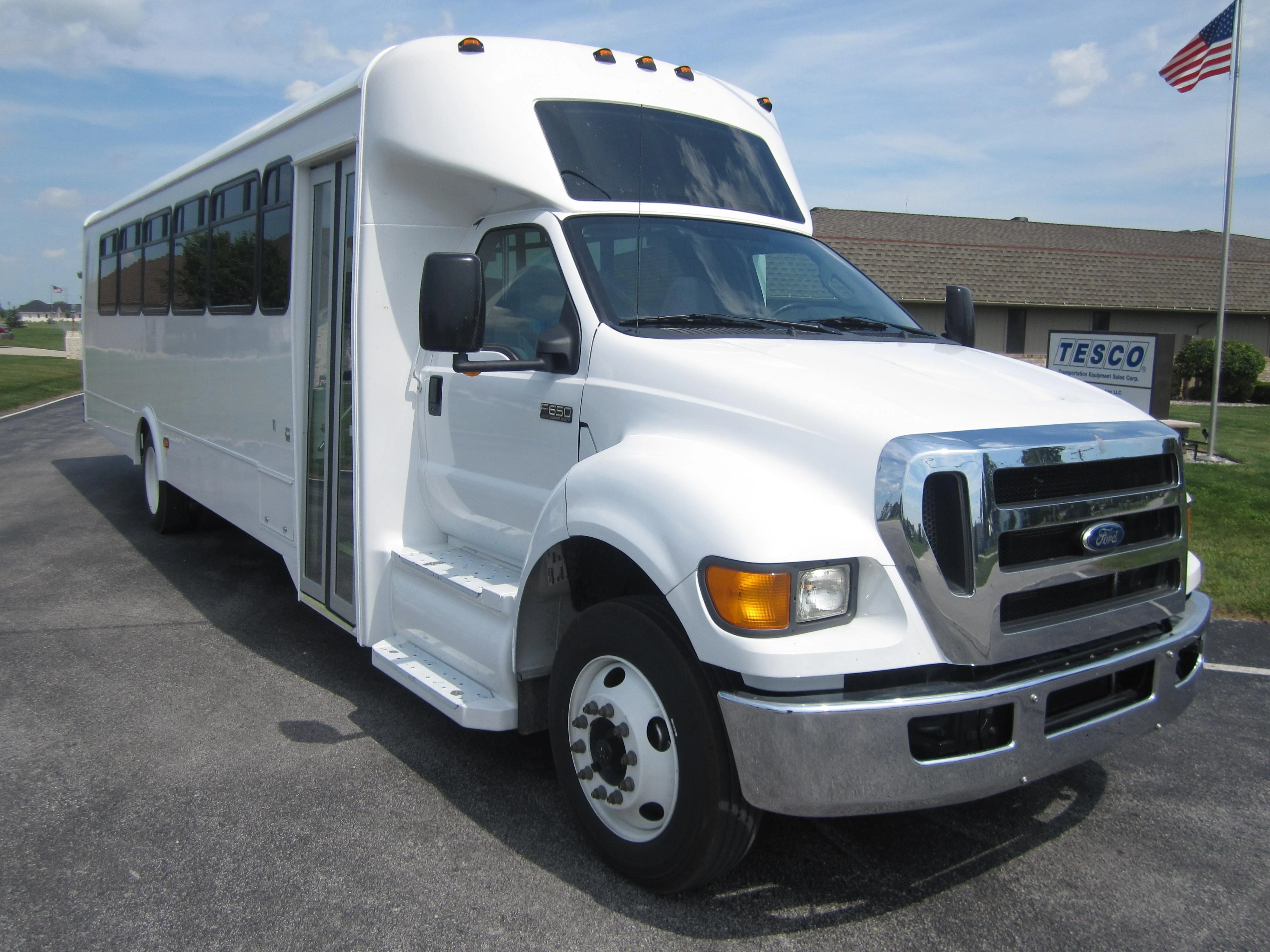

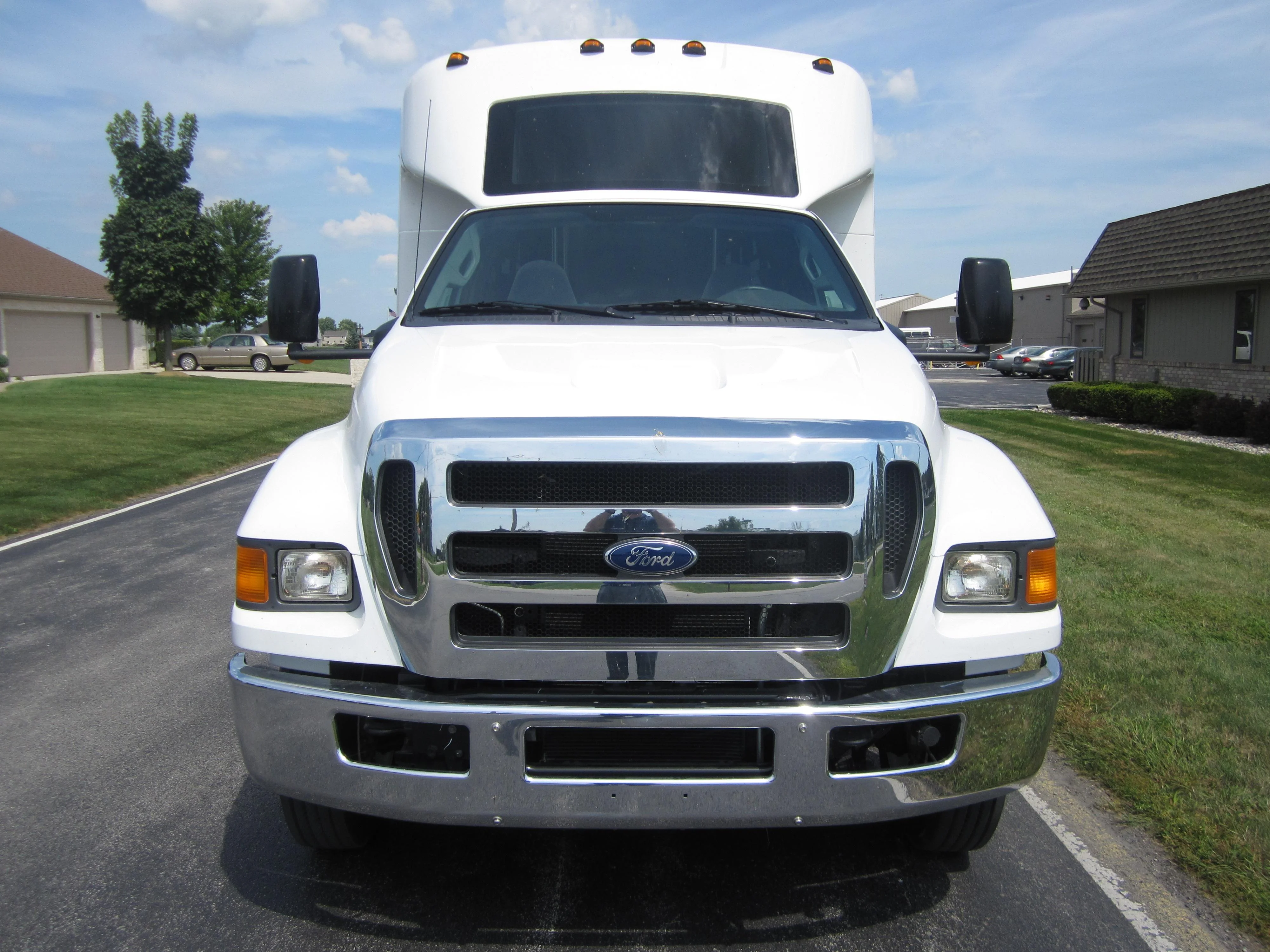

Featuring an aerodynamically designed front with a stunning upper panoramic window, the Concorde II provides passengers with exceptional visibility. Like other Glaval buses, it showcases durable “Steel-Safe” steel cage construction for enhanced safety and longevity. Colleges, university sports teams, and other large groups consider the Concorde II a perfect fit. Contact US Bus Connect at (833) 855-2332 to explore this exceptional premium bus option.

---

Glaval Concorde II Standard Conversion Features

• “Steel-Safe” Constructed Floor, Roof, and Sidewalls
• Galvanized Steel Floor Frame
• Galvanized Steel Stepwell
• Galvanized, All Structure
• 5/8” Treated Marine Grade Plywood Flooring
• Gray Koroseal Commercial Flooring w/Ribbed Aisle Cove Molding
• Vacuum Laminated Construction, Side and Rear

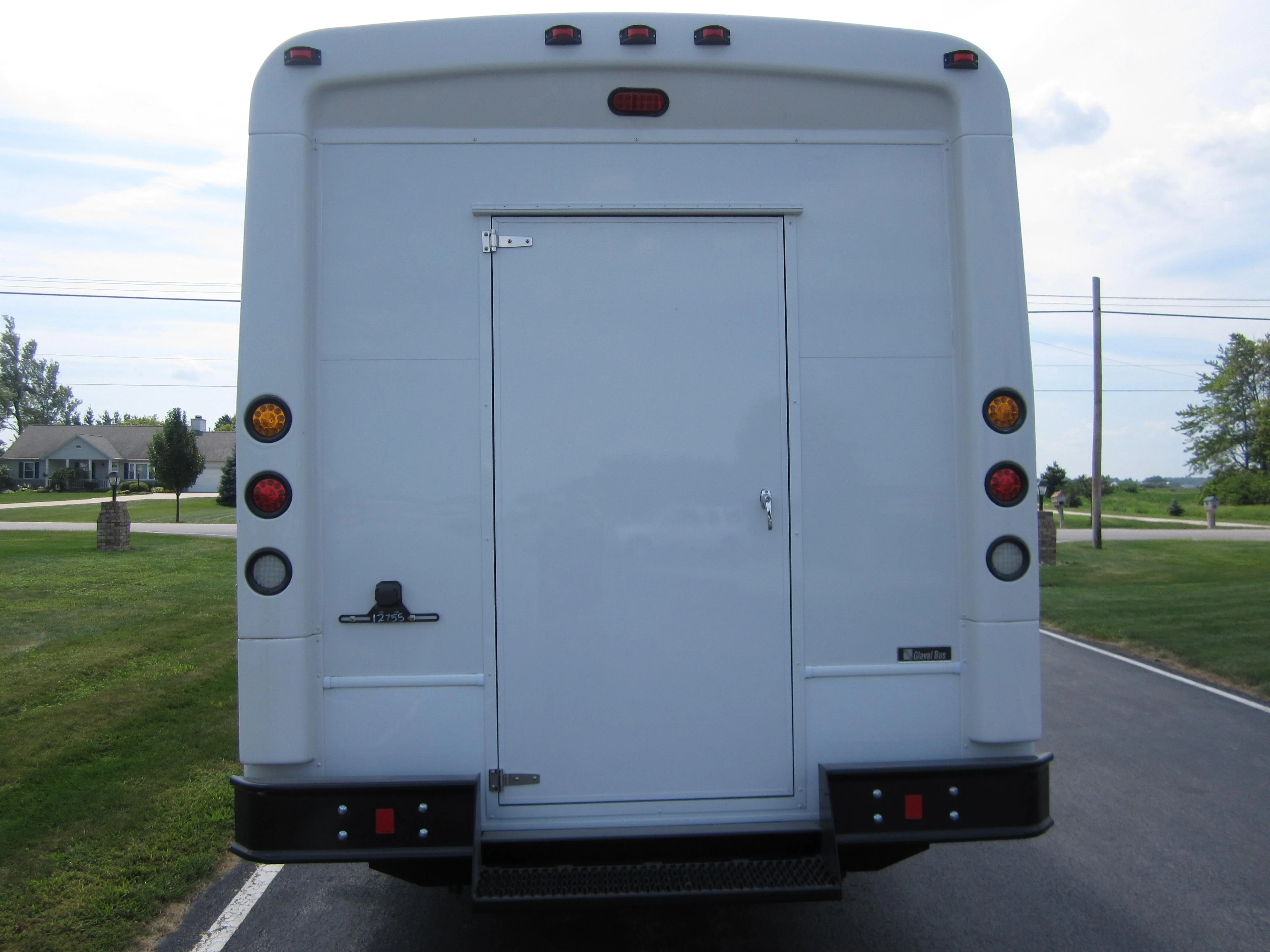

• Fiberglass Front Cap & 5-Piece ABS Rear Cap
• Fiberglass Composite Roof
• Frameless Bonded Windows includes Full Blackout Paint
• Electric Panel w/Diagnostic Fuses
• Exterior Heated Remote Mirrors
• Flat Floor
• LED Stepwell Lights
• Vinyl Clad Lauan Ceiling & Interior Sidewalls

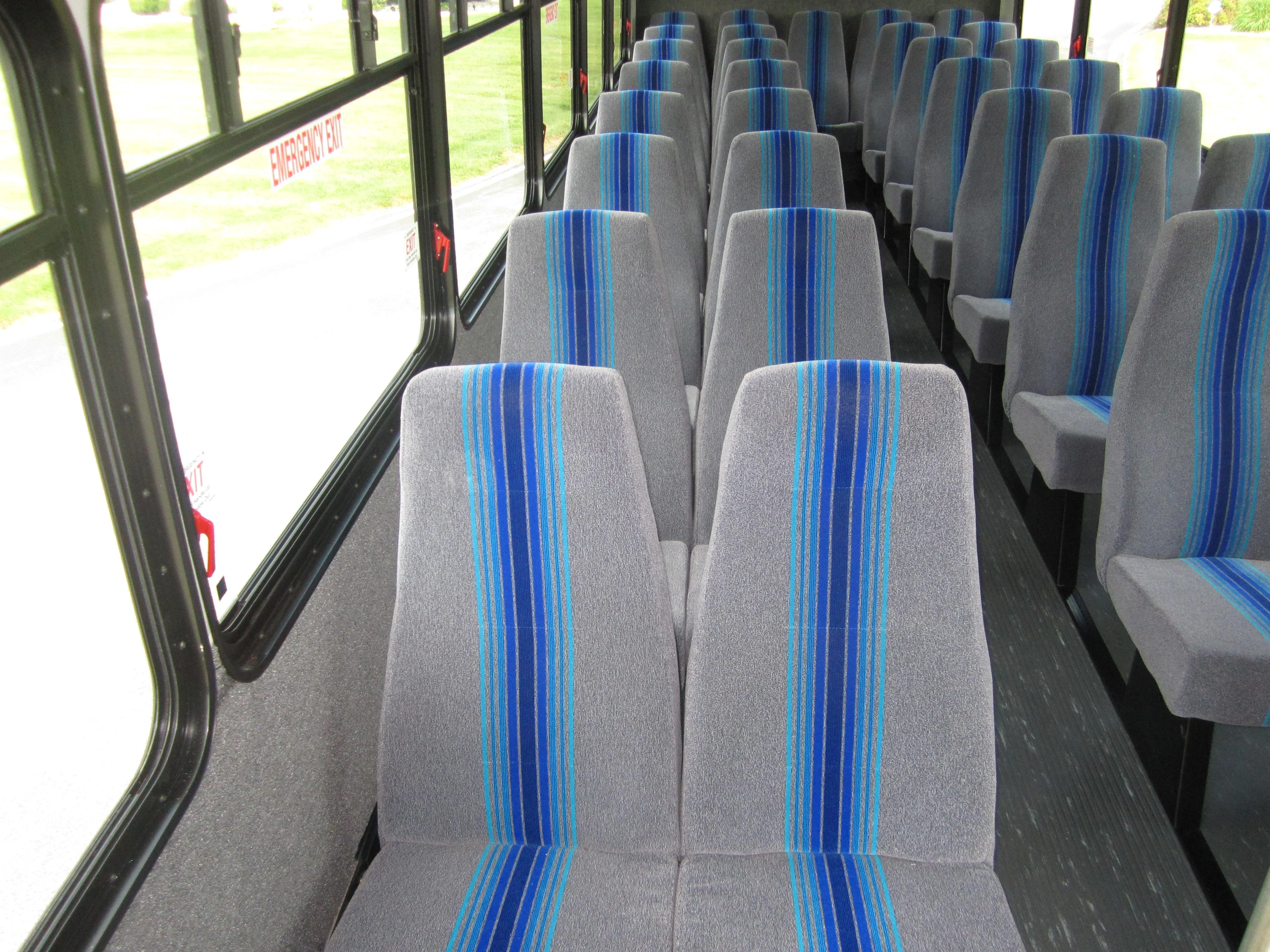

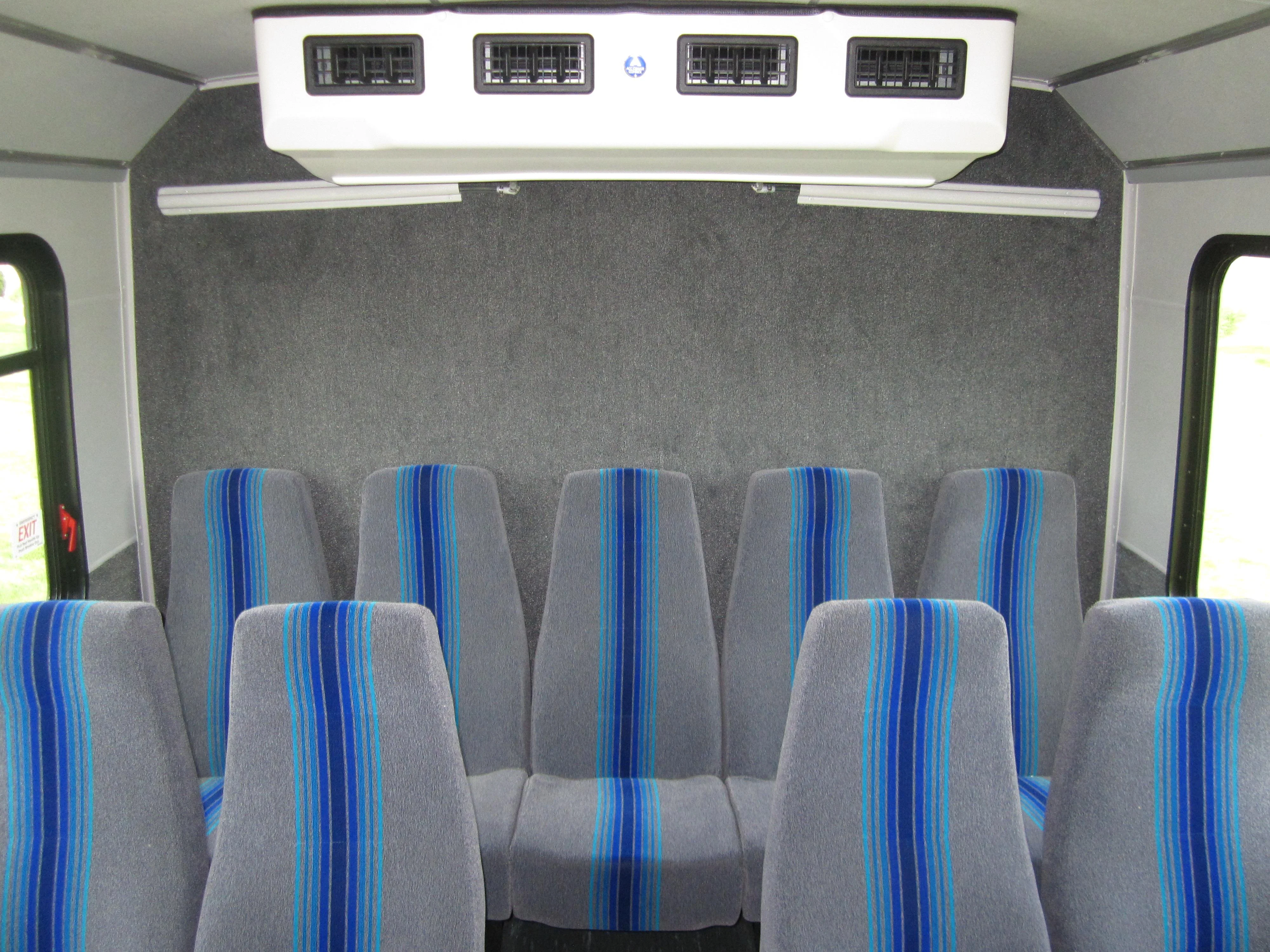

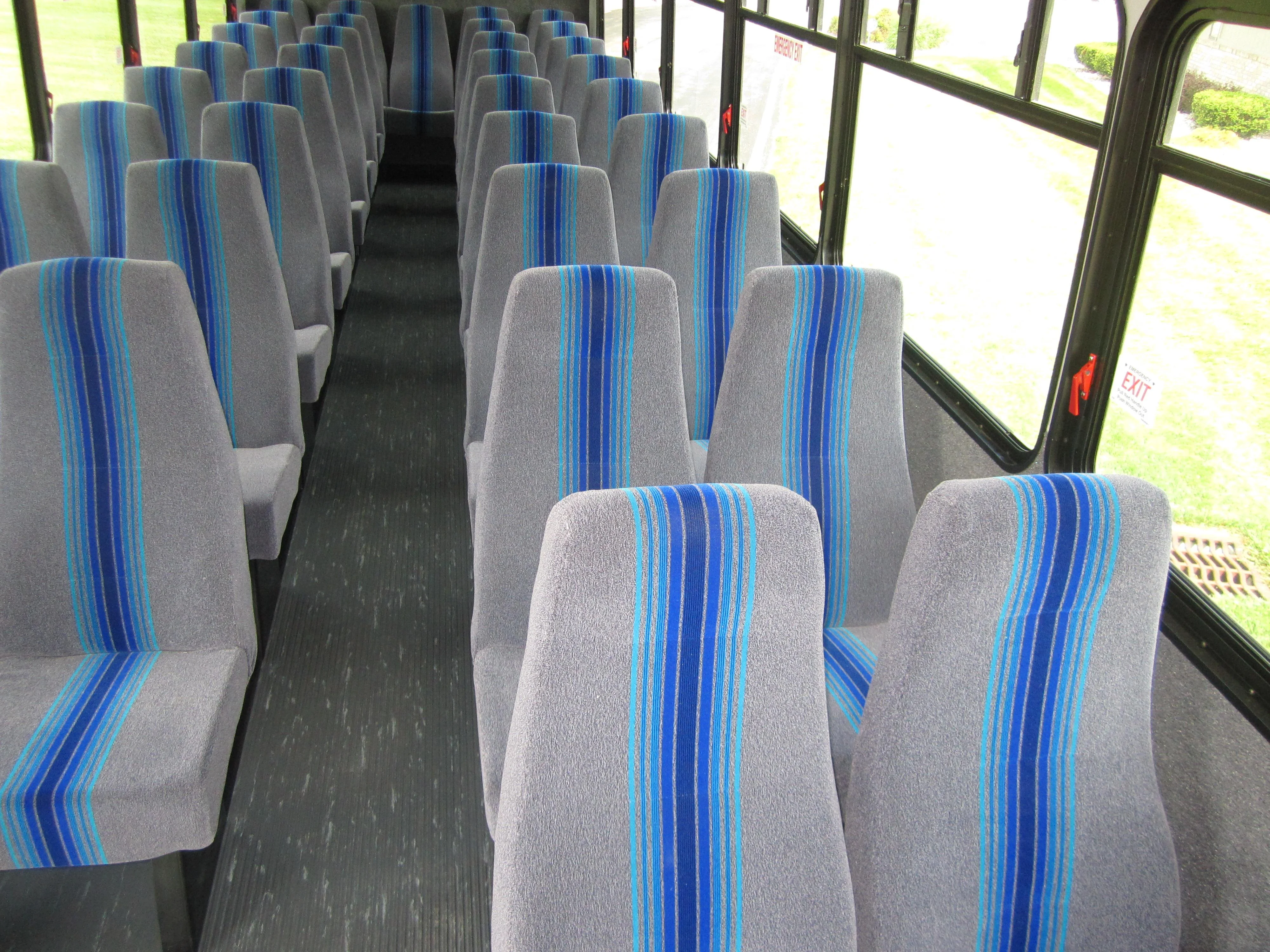

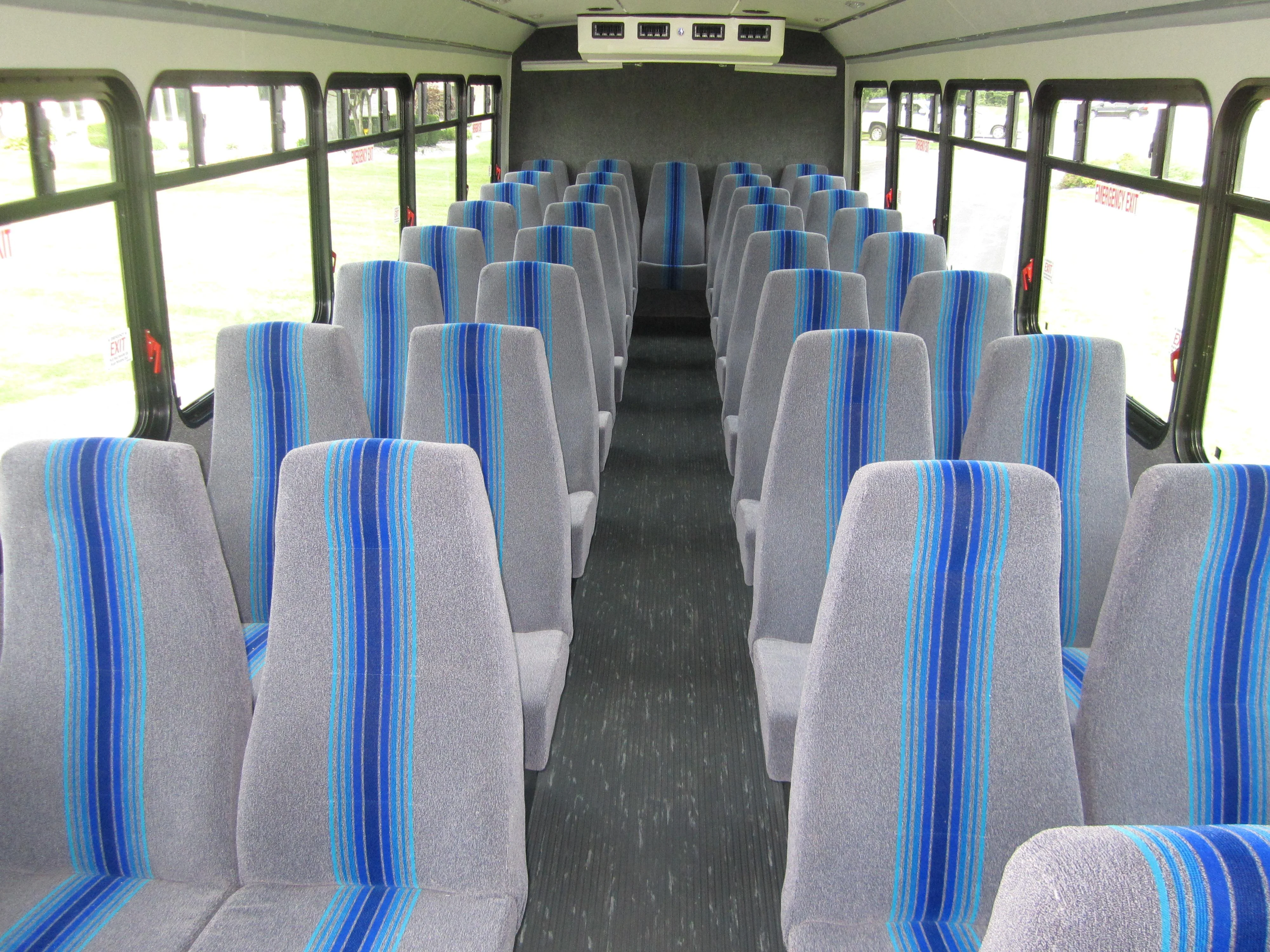

• Track Seating
• Curb side Entrance Modesty Panel & Stanchion
• All Exterior LED Lighting
• Rear Center Brake Light (LED)
• Rear Mud Shield
• Steel Rear Bumper (Powder Coated)
• Window Drip Rails
• Exterior Rub Rails
• White Exterior
• Foamed In-place Roof Insulation
• Front End Alignment (Toe-In, Toe Out)
• Under-Coating with Warranty

Backed by a 5-year/100,000-mile limited conversion warranty. Specifications and options are subject to change without notice.

Glaval Concorde II Chassis Specifications

• Chassis: Ford F-650

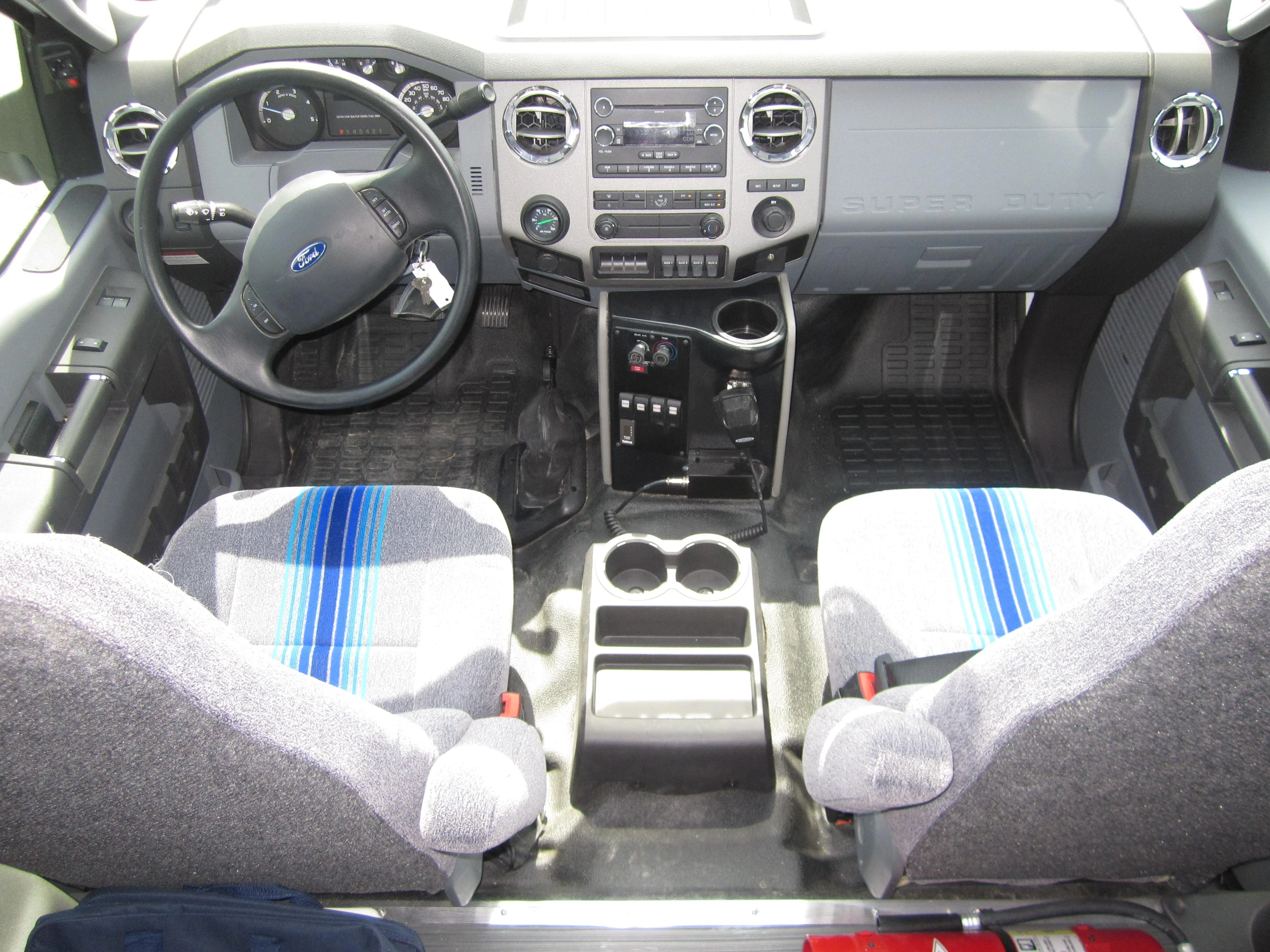

• Cab Seating: Standard Driver’s and Co-Pilot Seating
• Driver’s Seat: Standard Air-Ride High-Back Gray Cloth w/Arm Rest
• Engine: Cummins 6.7L Diesel
• Engine Rating: 240 hp; 560 lb-ft torque
• GVWR: 25,999
• Alternator: 320 Amp
• Fuel Tank: 65 Gallon
• Alternative Fuel: B-20 “Bio-Diesel” capable
• Urea DEF Tank: 5-Gallon
• Transmission: Allison 2200 PTS 5-Speed w/Park Pawl
• Brake System: Hydraulic ‘Quadraulic Split’ 4-Channel ABS
• Parking Brake: Bosch DSSA Type 12 x 3. Orsceln Lever
• Wipers: Standard Intermittent
• Battery: Dual 900 CCA Batteries (1800 CCA Total)
• Cruise Control: Standard Electronic
• Fast Idle: Standard
• Steering: Power w/Tilt Steering Wheel
• Wheels: 22.5” x 7.5” Powder Coated Steel 10-Hole w/Dual Rear
• Tires: Michelin XZE 235/80R22.5G (555 rev/mile)
• Stereo: Standard AM/FM/CD & Clock
• Speakers: Standard 8 Total (includes cab area)
• Tow Hooks: Standard Front Frame Mounted
• Air System: Cummins 18.7 CFM (Includes Gauge)
• Hood: Full Easy Tilt
• Air Drain Valve: Bendix DV-2 Automatic w/Heater
• Rear Axle Ratio: 5.29 to 1
• Front Axle Rating: 10,000 lb Dana I-Beam Type
• Front Spring: 10,000 lb Taper Leaf
• Rear Axle Rating: 19,000 lb Meritor Single-Speed
• Rear Spring: 18,500 lb Air-Ride w/Leveling Valve
• Auxiliary Power: 12-Volt In-Dash
• Front Bumper and Grill: OEM Chrome
• Engine Block Heater: Standard 120 Volt/750 Watt Phillips
• Headlights: Halogen Lamp
• License Plate Holder: Standard Front and Rear

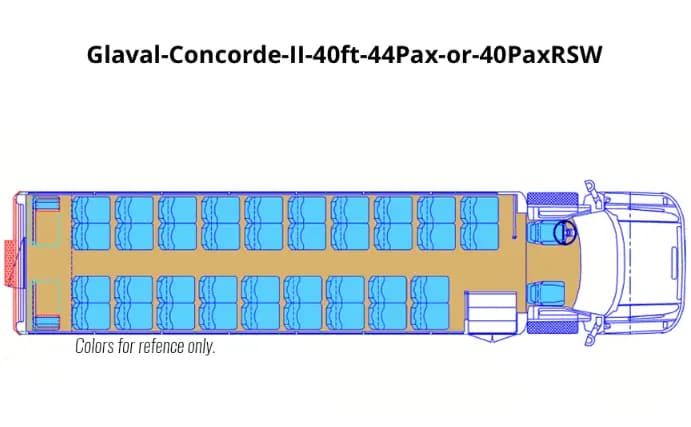

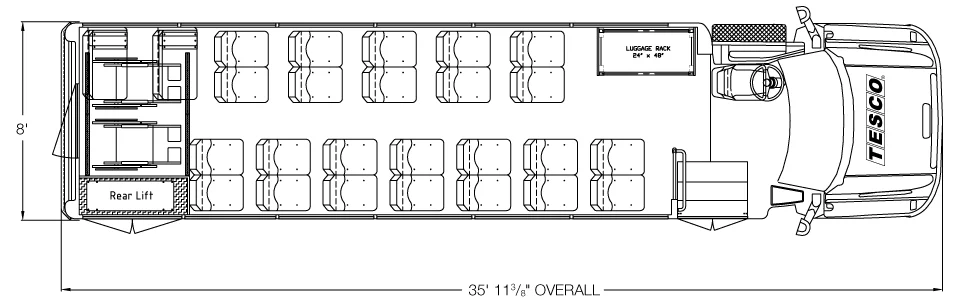

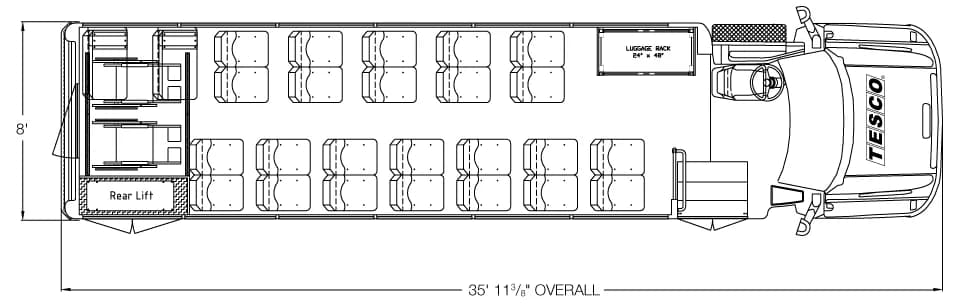

Glaval Concorde II Model Specifications

• Wheelbase: 240”, 260”, 281”

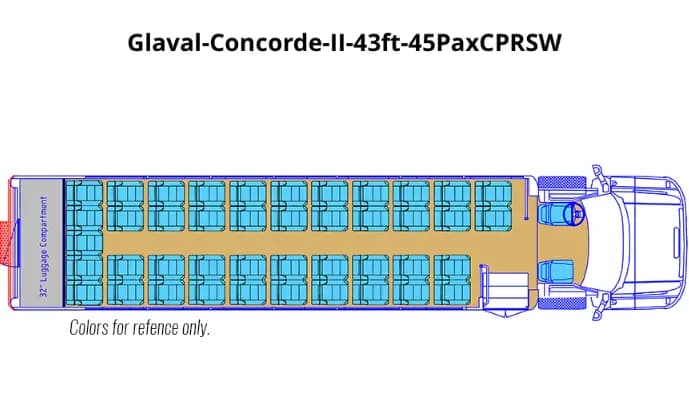

• Overall Length: 30’, 32’, 34’, 36’, 38’, 40’ (Bumper to Bumper) (Optional 43’ w/F750)
• Overall Width: 96” (Optional 102”)
• Overall Height: Approximately 128” (Overall height can vary based on bus length, wheelbase, and option content)
• Front Overhang: 50”
• Interior Height: 78-1/2”
• Interior Width: 92” (98” wide option available)
• Interior Floor Height From Ground: 43-1/2”
• Entry Door Dimensions: 30” x 87” (clear opening)
• Aisle Width: 18”
• Clear Door Opening: 30”
• Ground to First Step: 14”
• Step Riser: 9-3/8”
• Step Tread: 10”
• Step Width: 34”

Glaval Concorde II Paratransit Options

• ADA Lighting (Lift and Door)
• ADA Signs
• Double Doors (Lift)
• Belt Storage Box
• Interlock System
• Padding Kit
• Surelok/Qstraint Tiedowns
• Lift Package, Braun
• Lift Package, Maxon
• Lift Package, Ricon

**Lift Package Includes: Single Door; Lift; Park Interlock; ADA Signs; Door Activated Lift and Entrance Lighting, Rear Exhaust (Rear or Roadside Exhaust Required on Rear Lift Models.)
