Glaval Entourage

Glaval Entourage

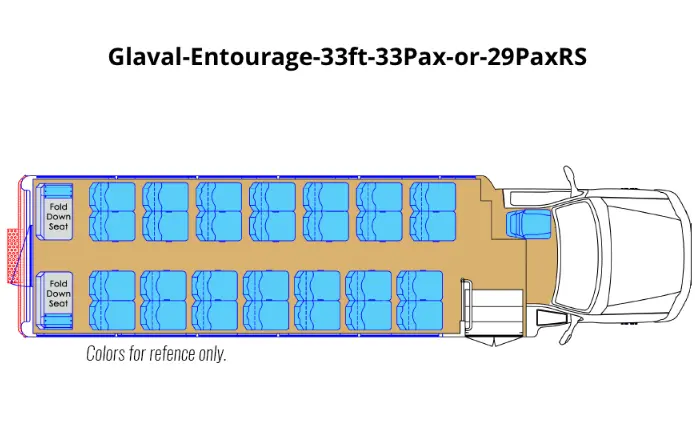

The Glaval Entourage stands out as the top shuttle bus, built on the robust Ford F-550 chassis. Capable of seating up to 33 passengers, including the driver, it surpasses the capacity of typical 15-passenger buses or vans. A favored setup for the Entourage is the 33/29RS configuration.

Featuring two fold-up seats at the rear, this layout allows the bus to transport either 33 passengers or 29 passengers with additional rear storage when those seats are folded. This versatile version of the Entourage is our most sought-after 33-passenger model at US Bus Connect due to its flexibility. It’s a preferred choice for tour and charter companies, university sports teams, and churches alike. The bus can also be equipped with ADA-compliant wheelchair stations to support passengers with mobility challenges.

The bus’s front design is among the most aerodynamic in its class for larger, full-size buses. Its full-view curbside window enhances visibility and safety. Glaval’s renowned “Steel-Safe” framing, utilizing 1-1/2” square galvanized steel tubing, forms the structural backbone of the Entourage.

A distinctive feature of this bus is the factory-applied undercoating, where units are sealed with expanding spray foam to minimize road noise. The roof also benefits from spray foam insulation, further reducing noise and ensuring a more pleasant ride for passengers.

Glaval Entourage Images

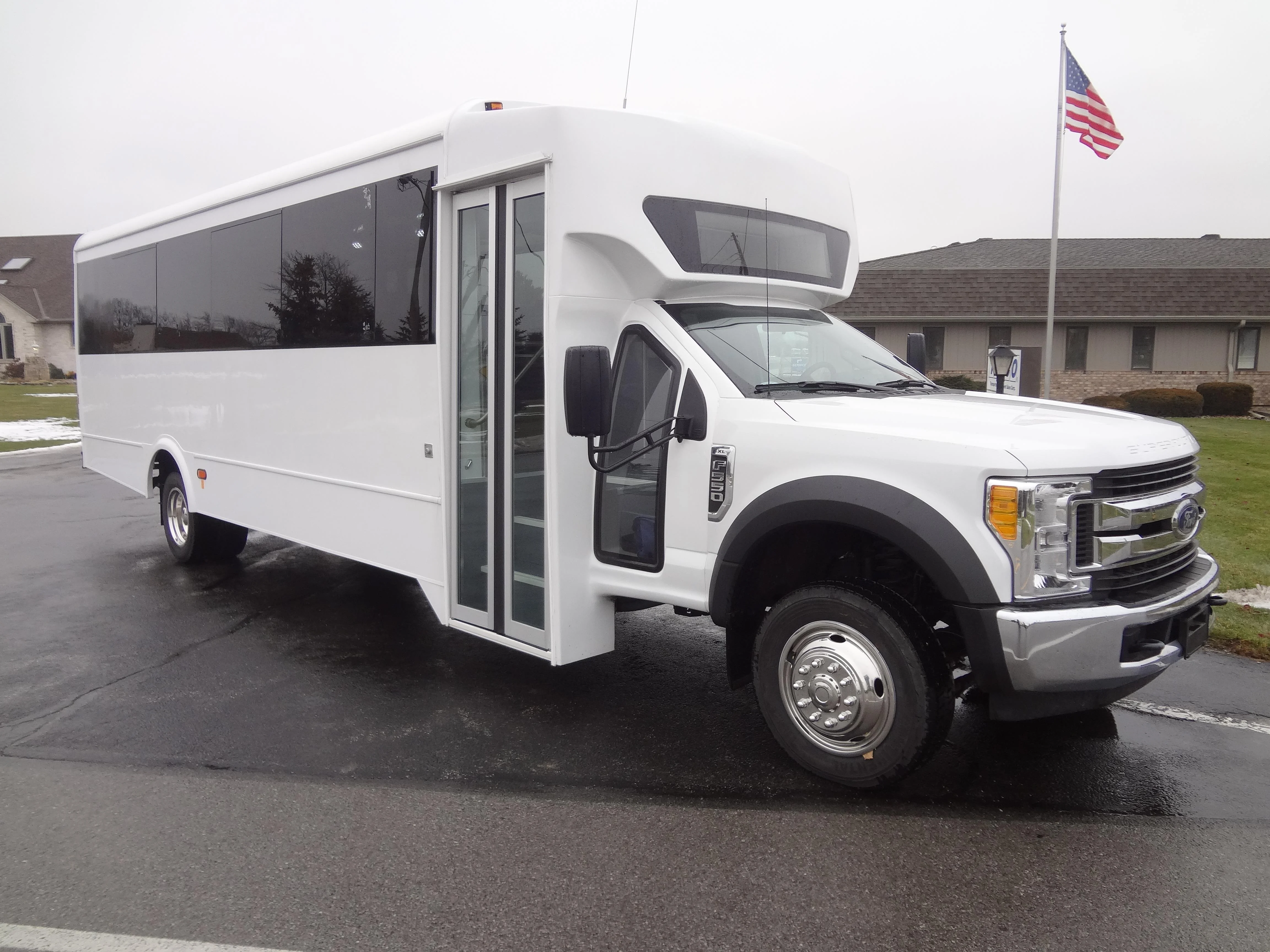

GL23206 1a

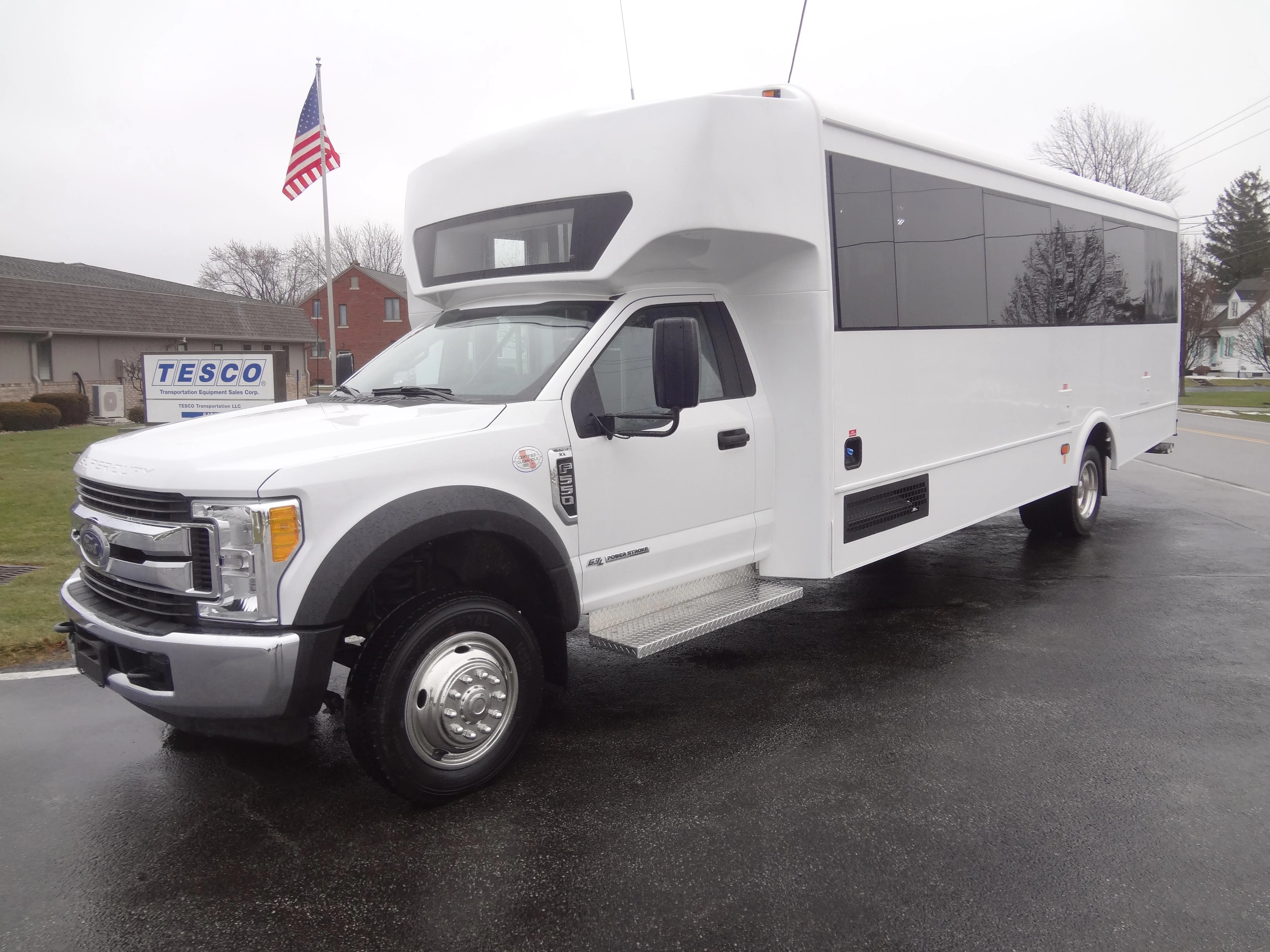

GL23206 2a

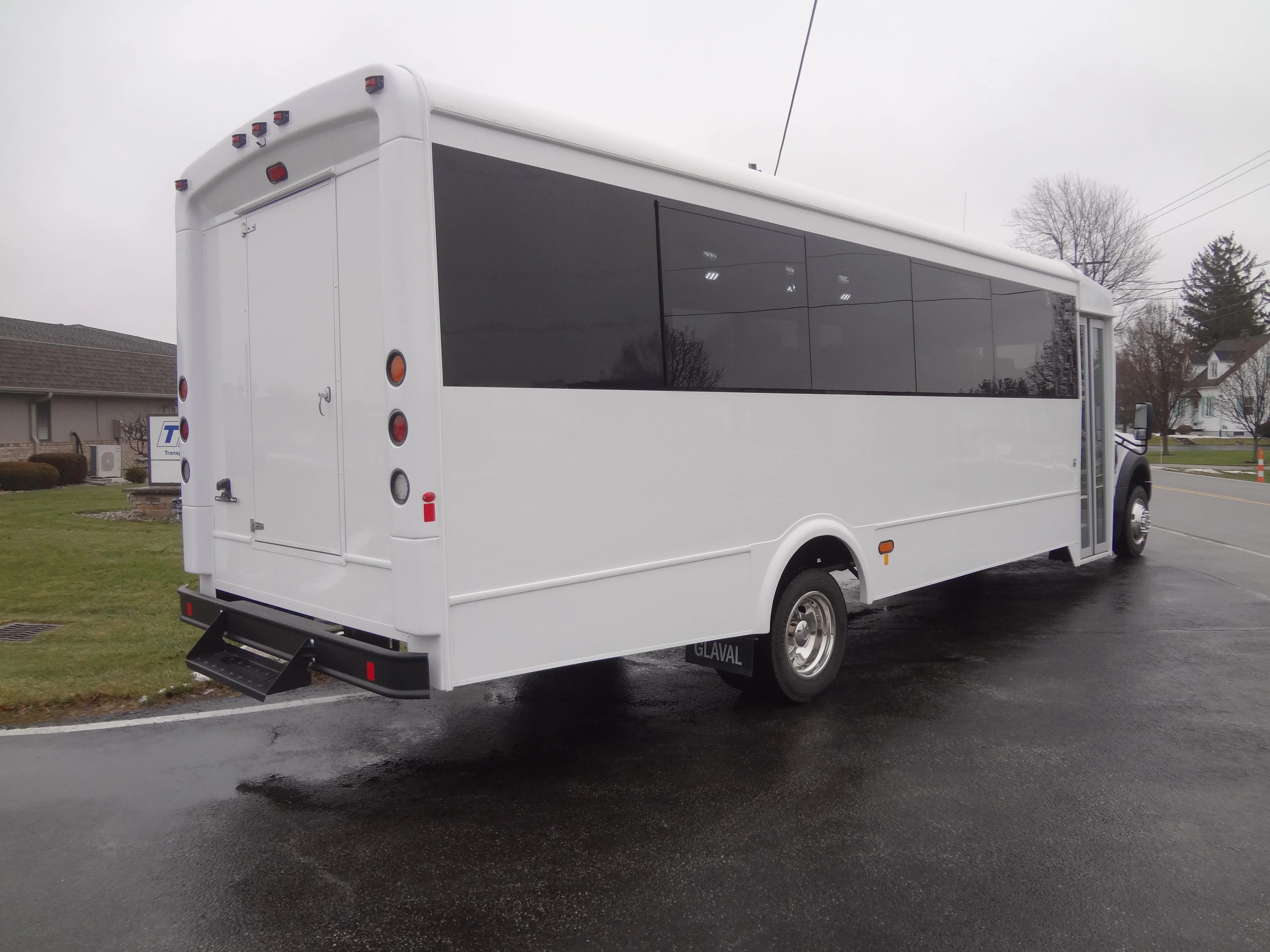

GL23206 3a

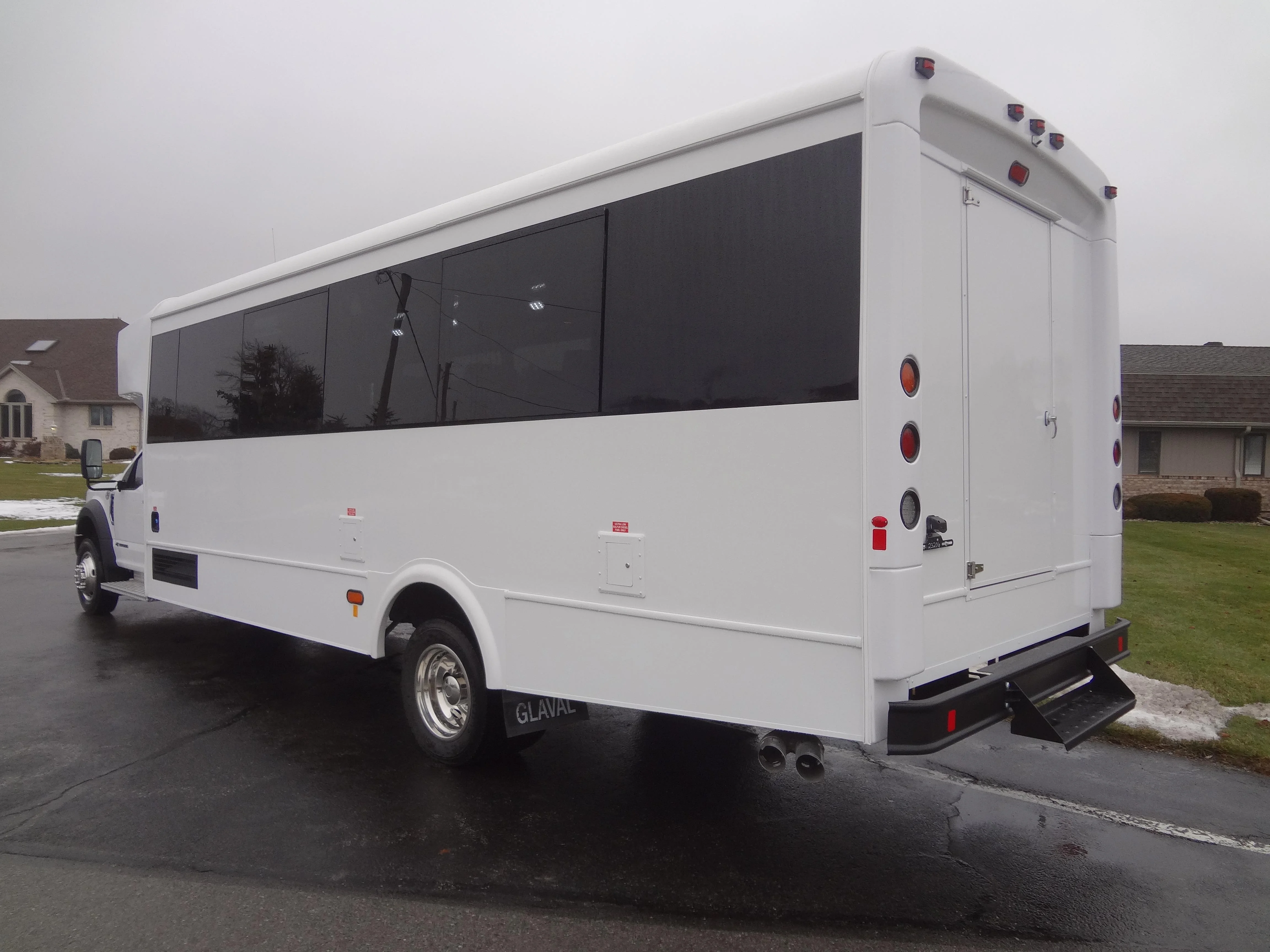

GL23206 4a

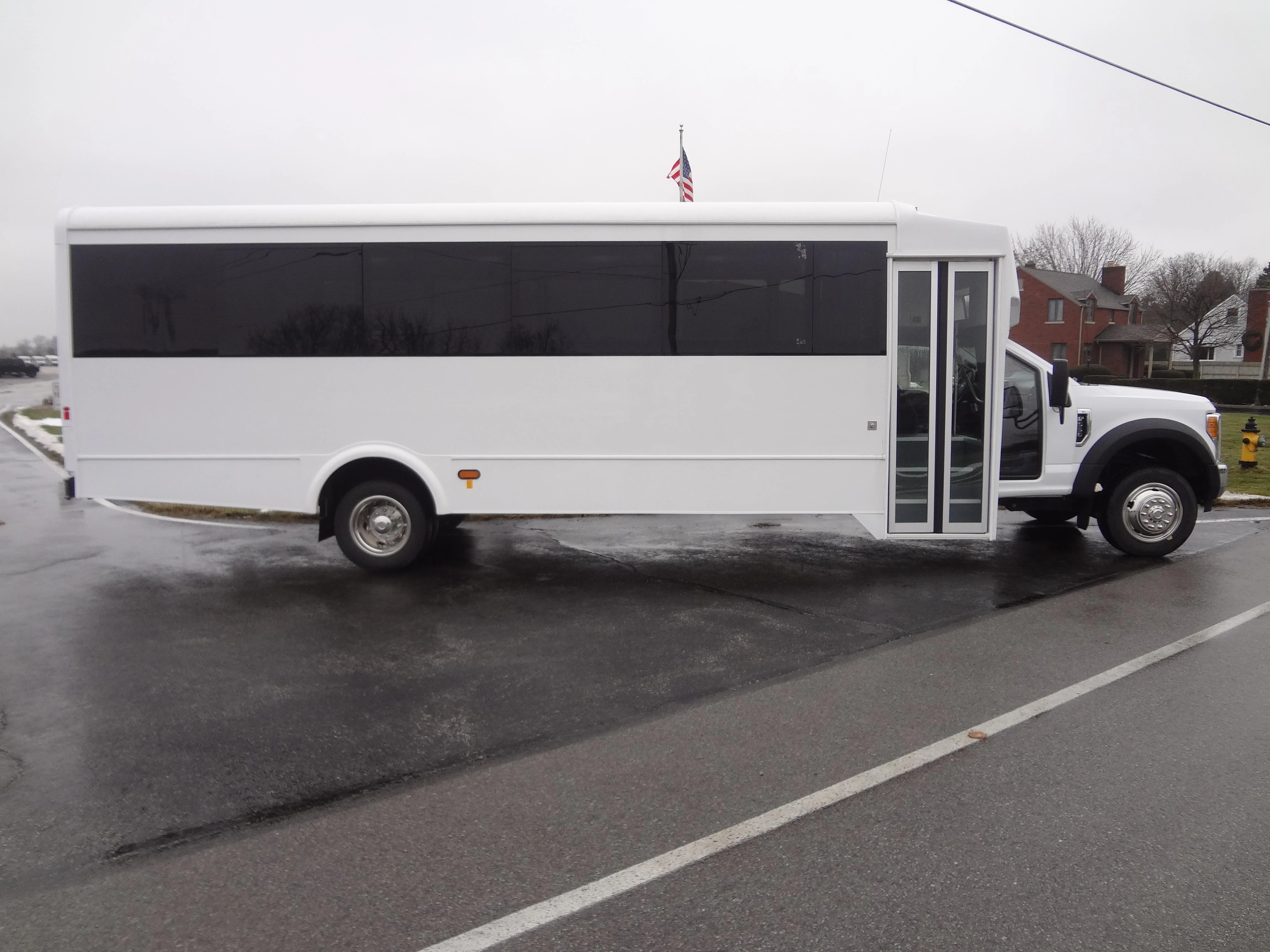

GL23206 5a

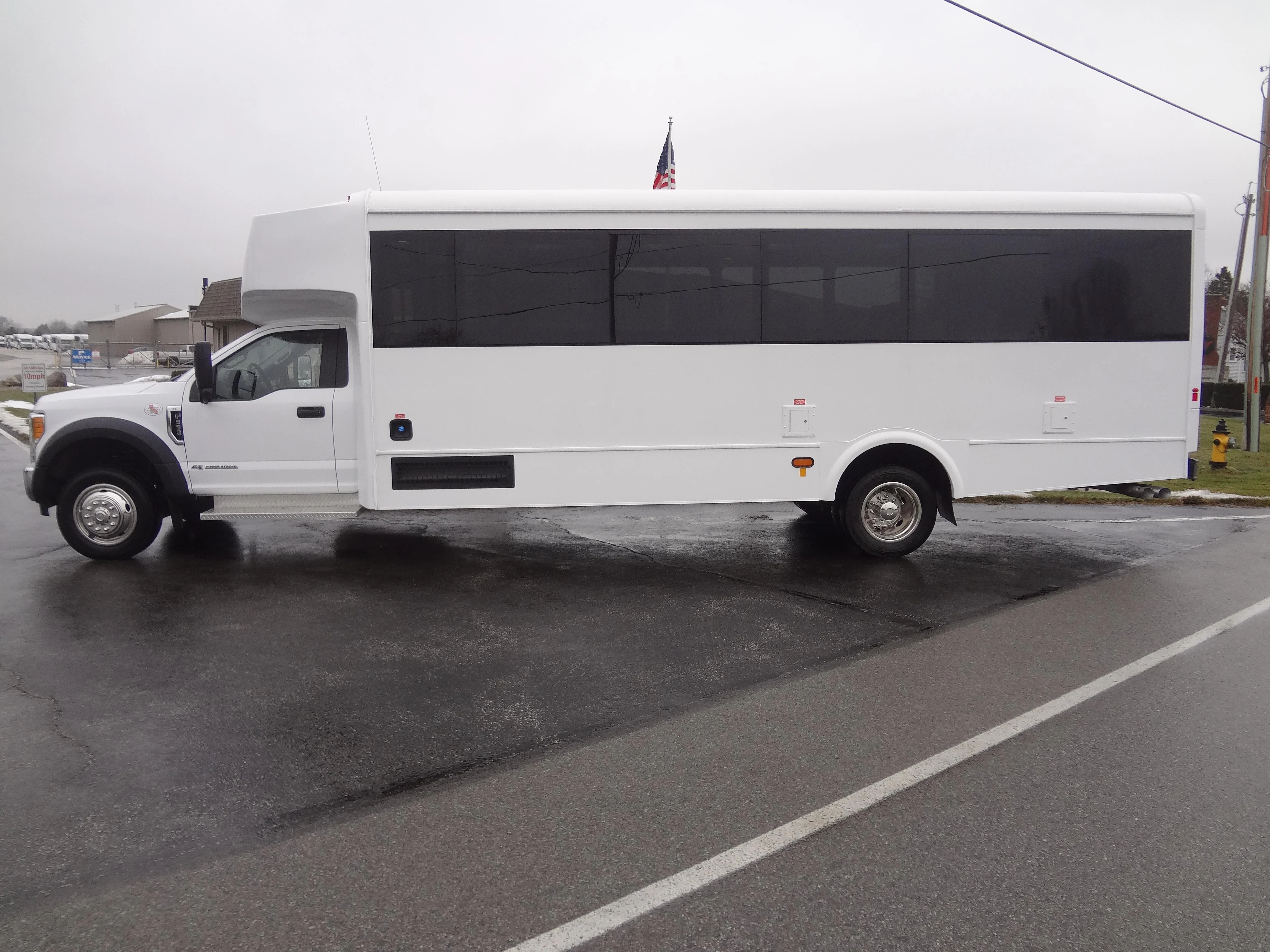

GL23206 6a

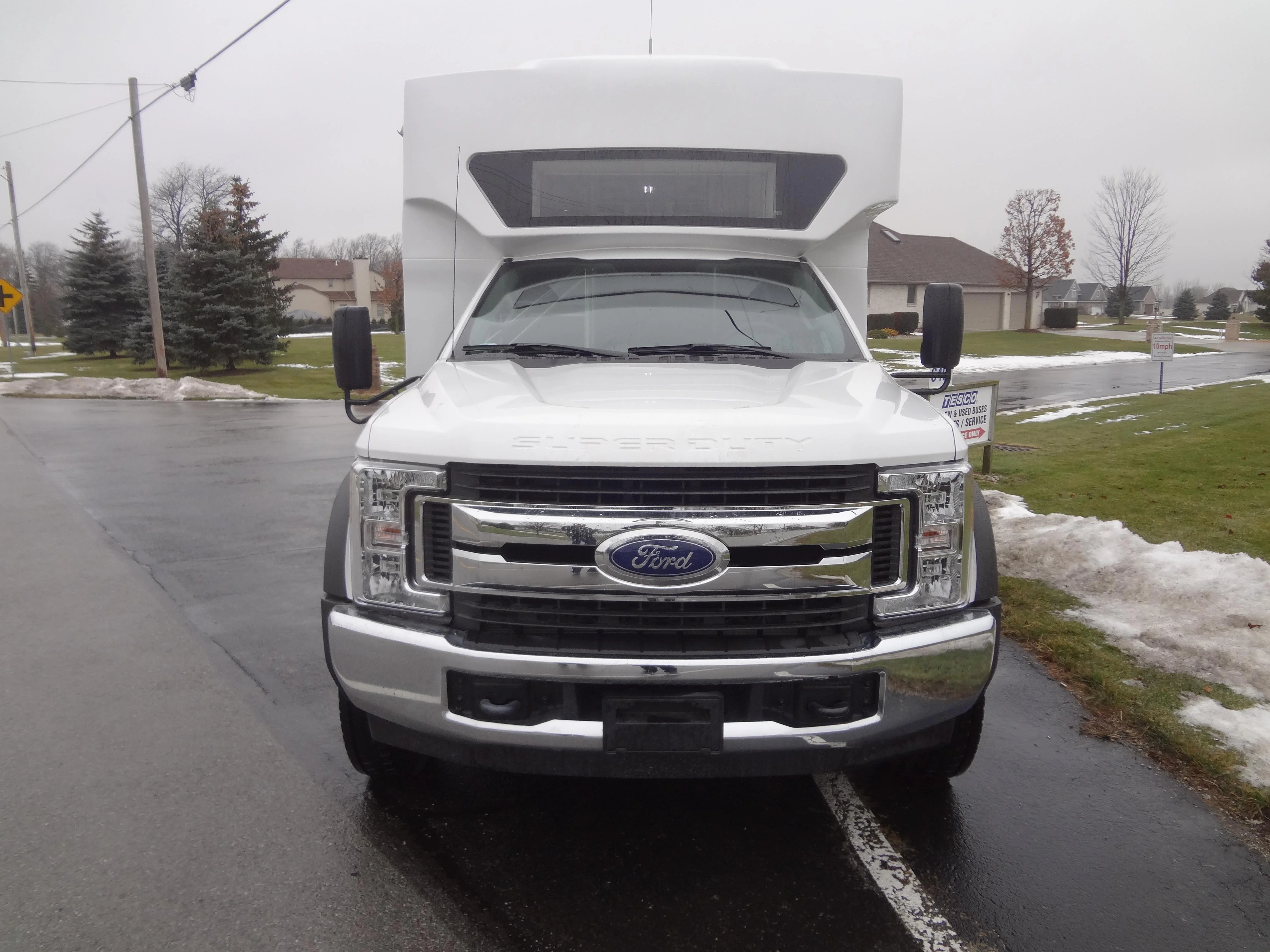

GL23206 7a

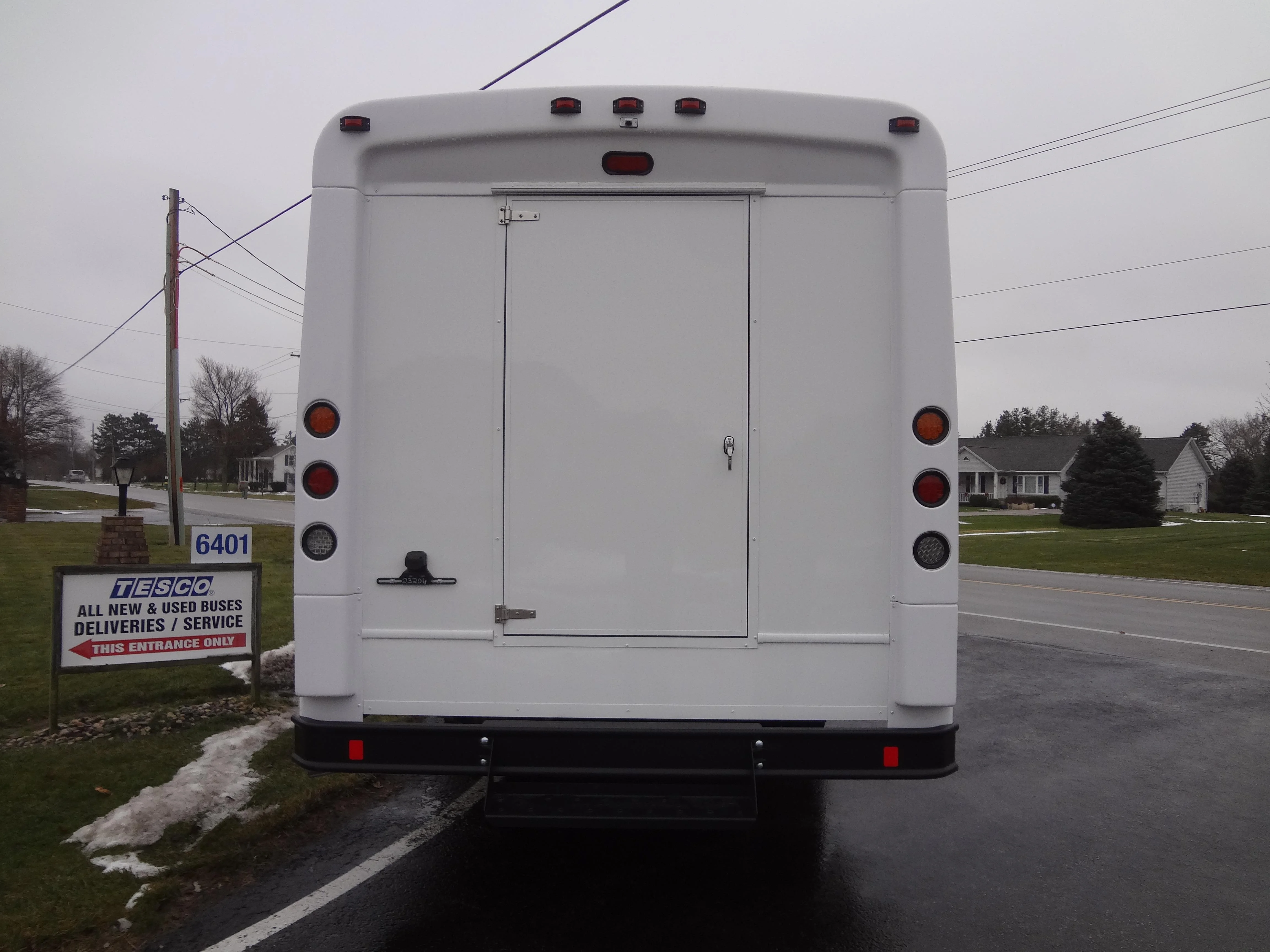

GL23206 8a

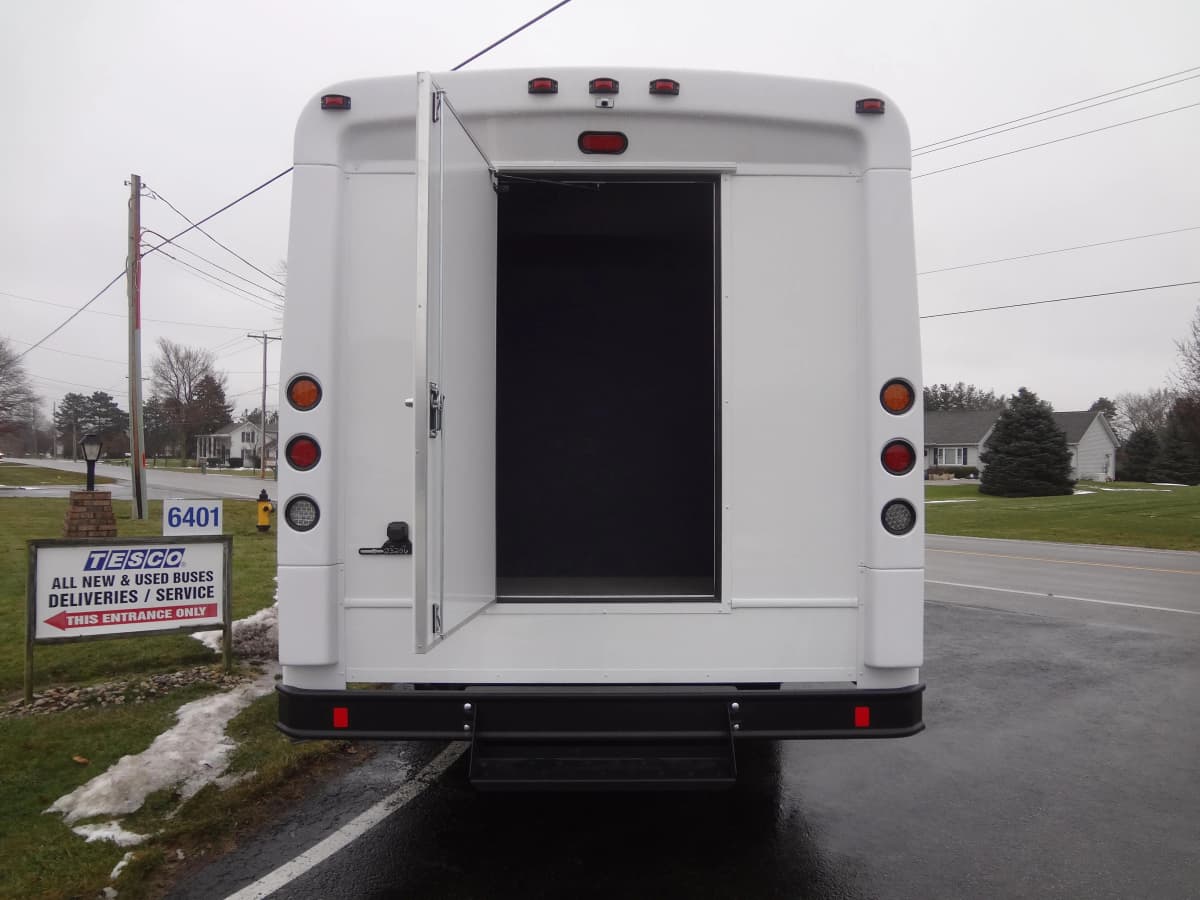

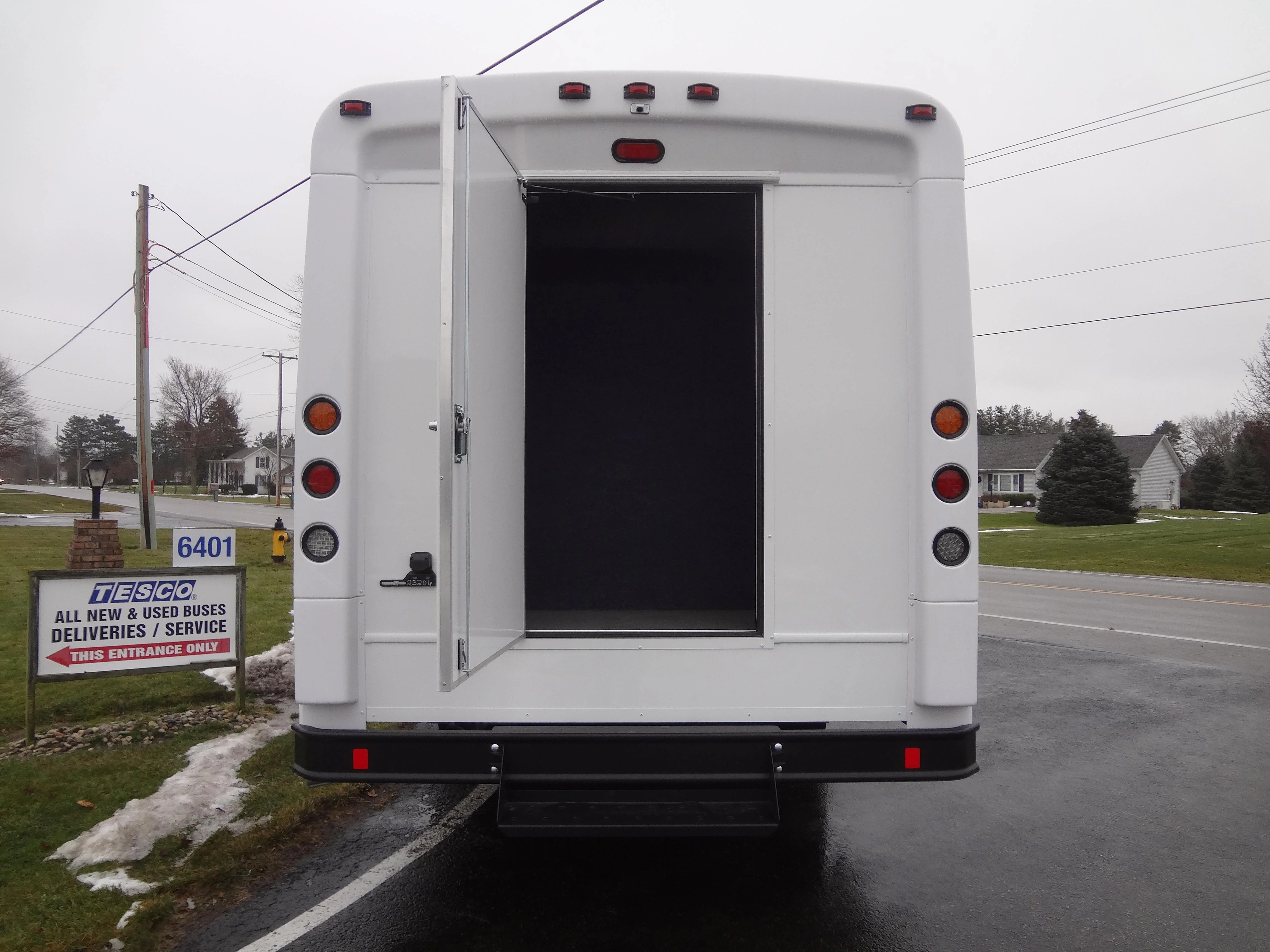

GL23206 9a

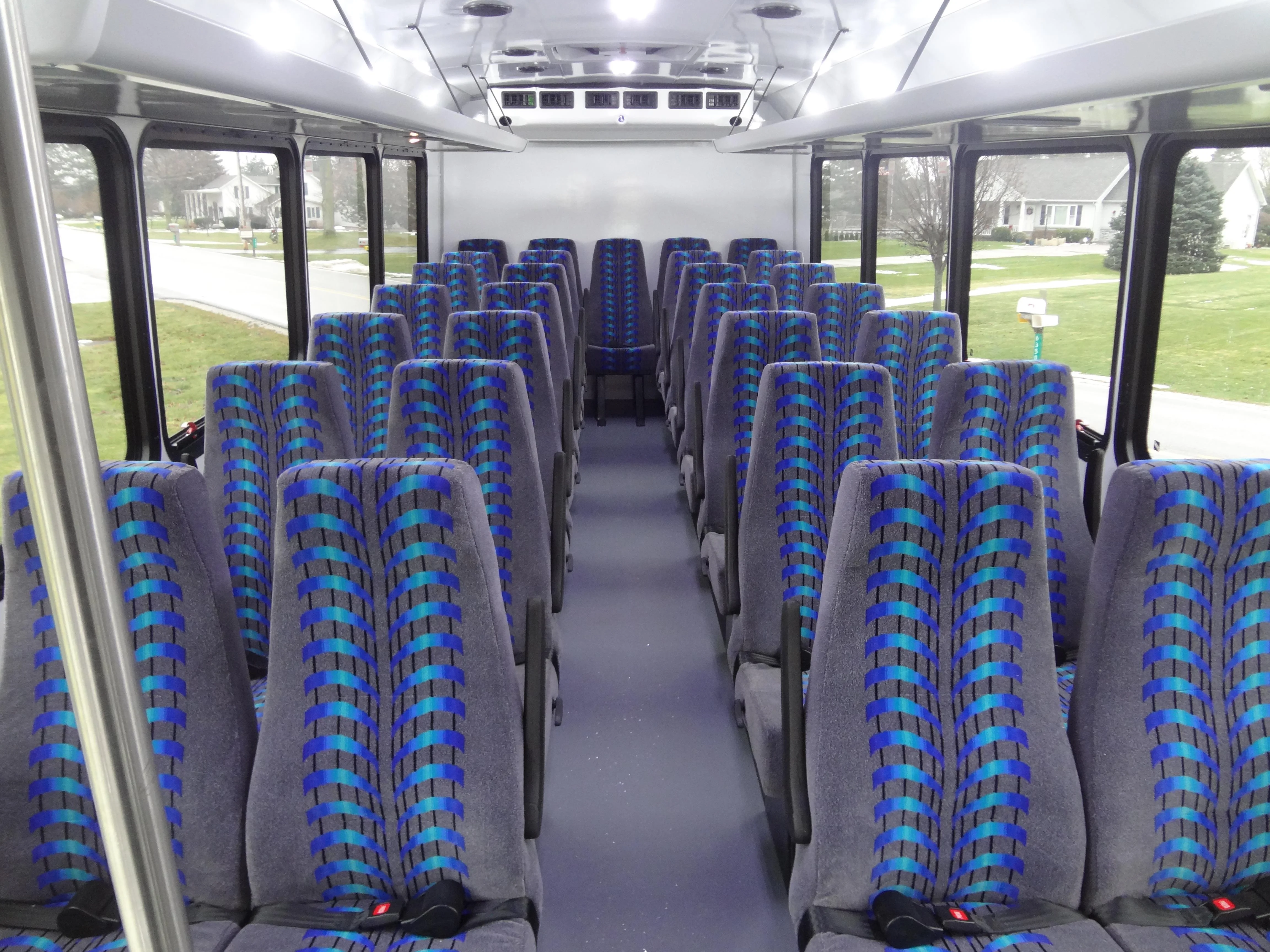

GL23206 10a

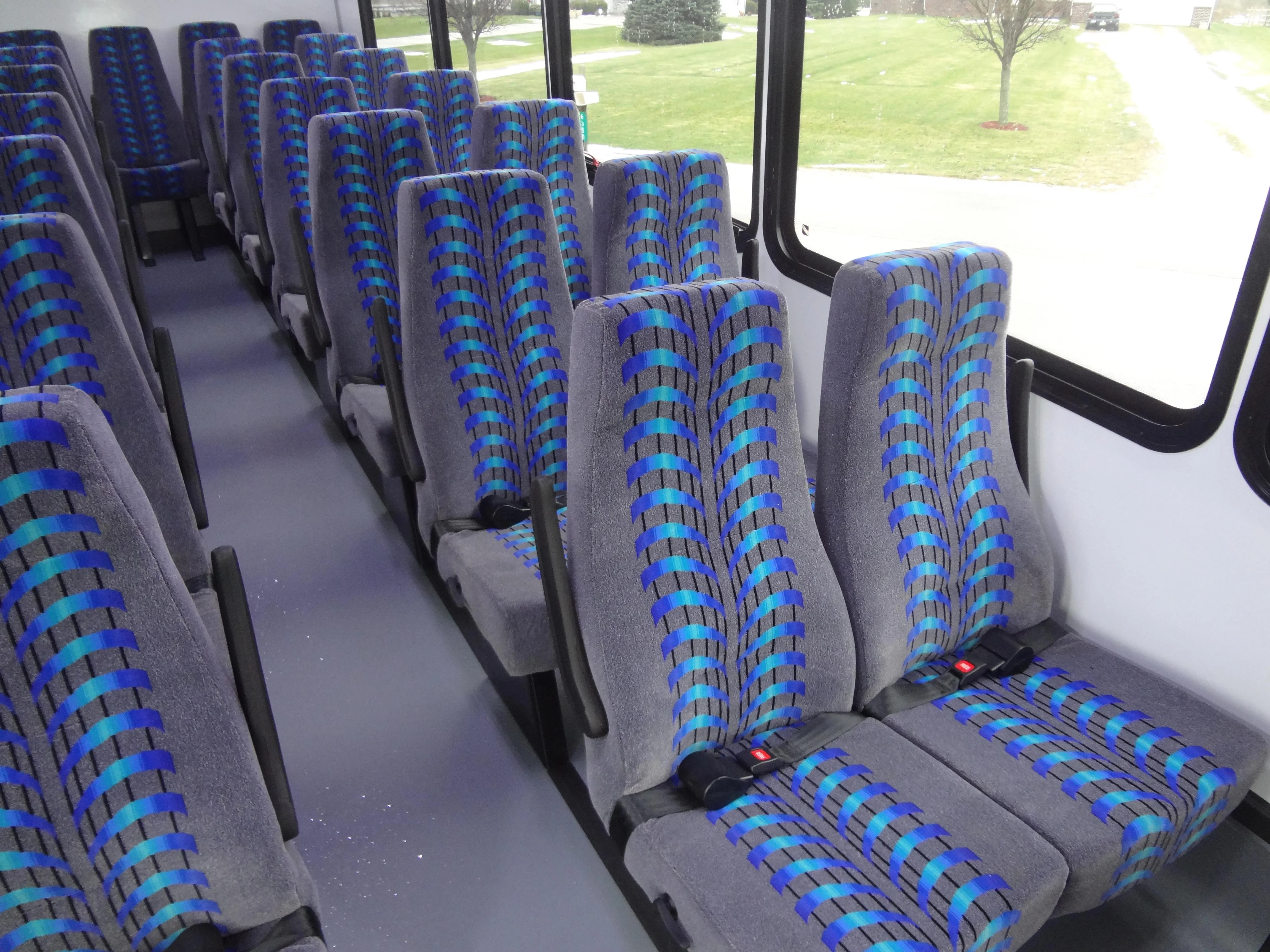

GL23206 11a

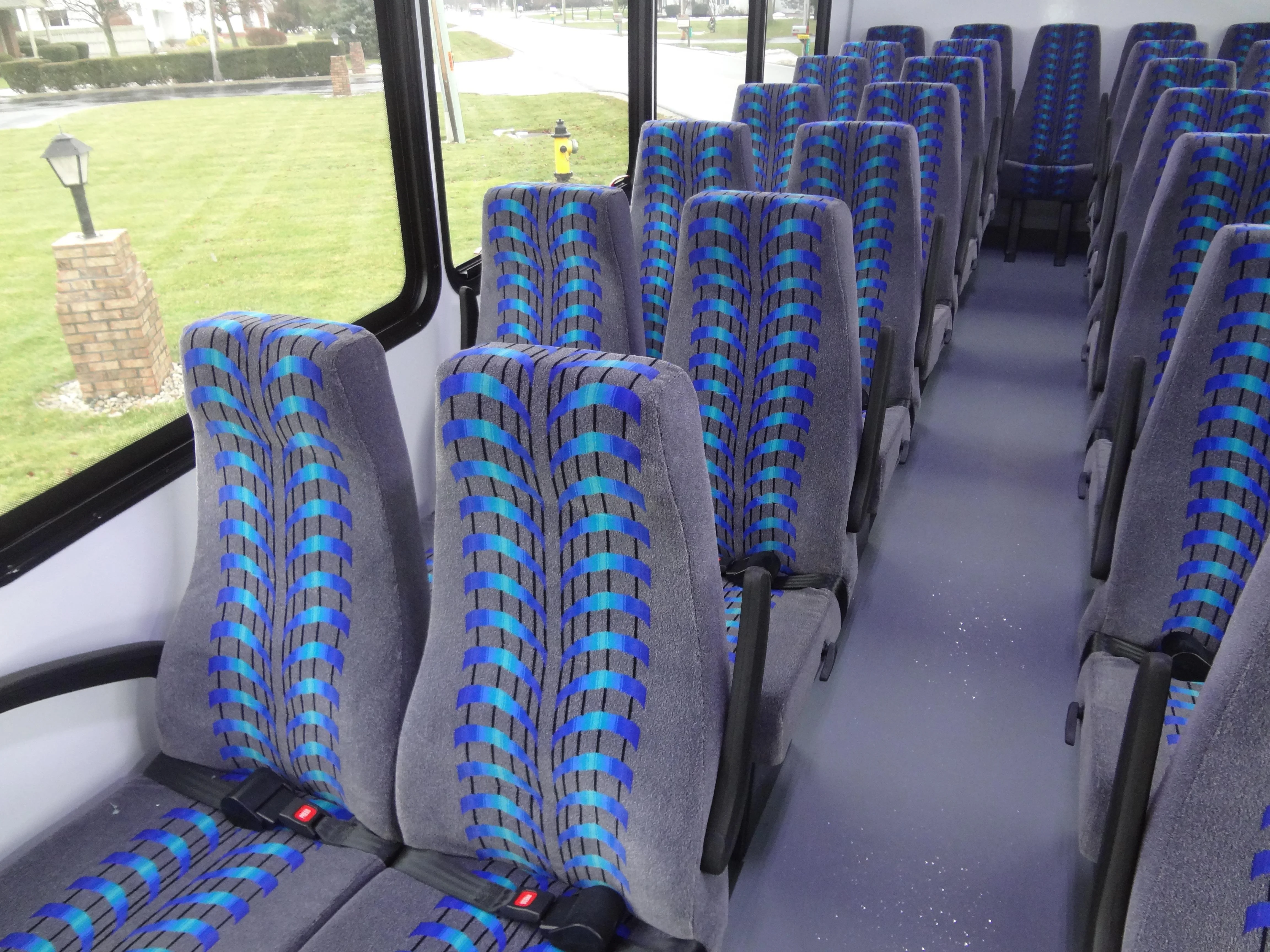

GL23206 12a

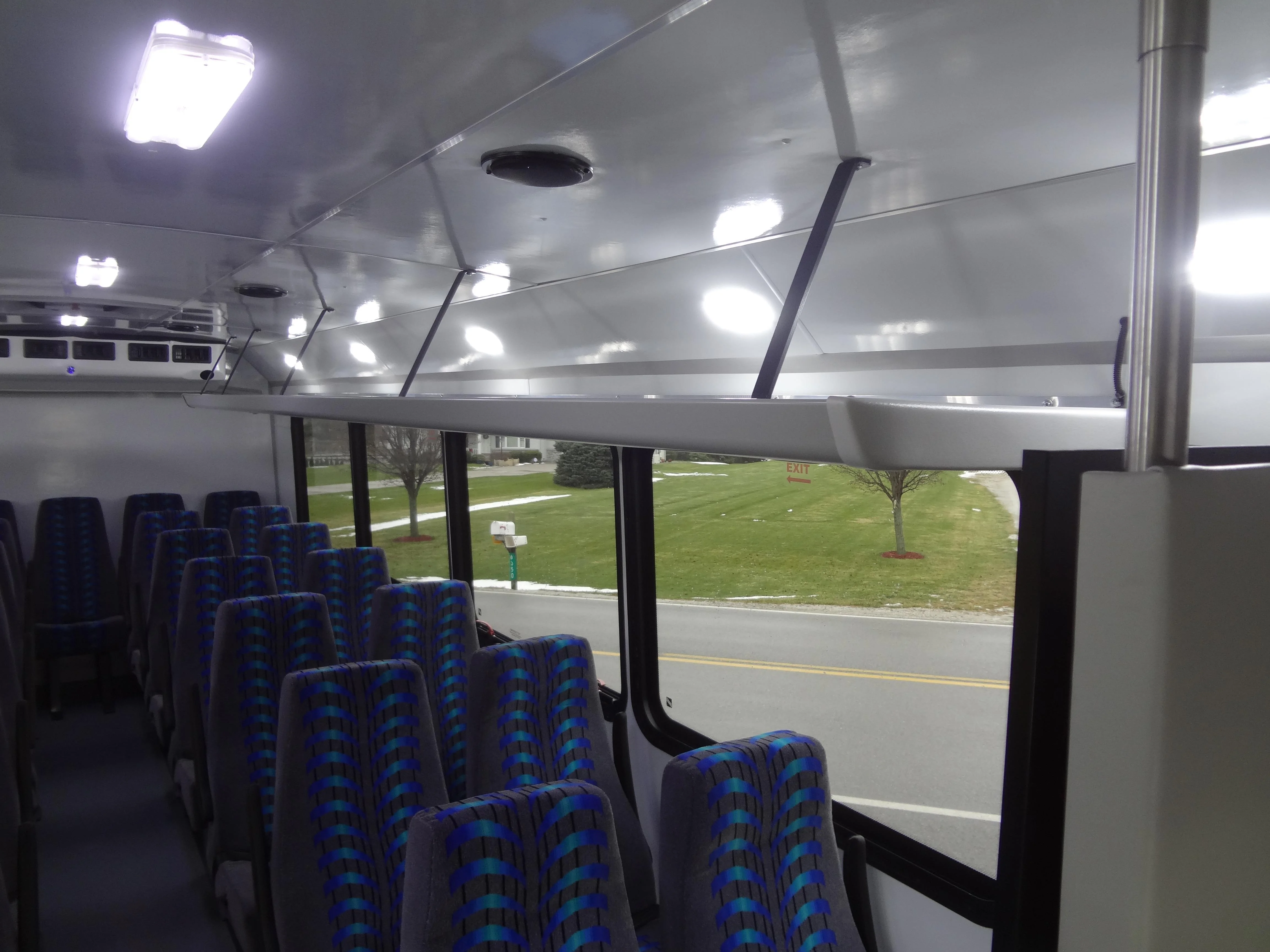

GL23206 13a

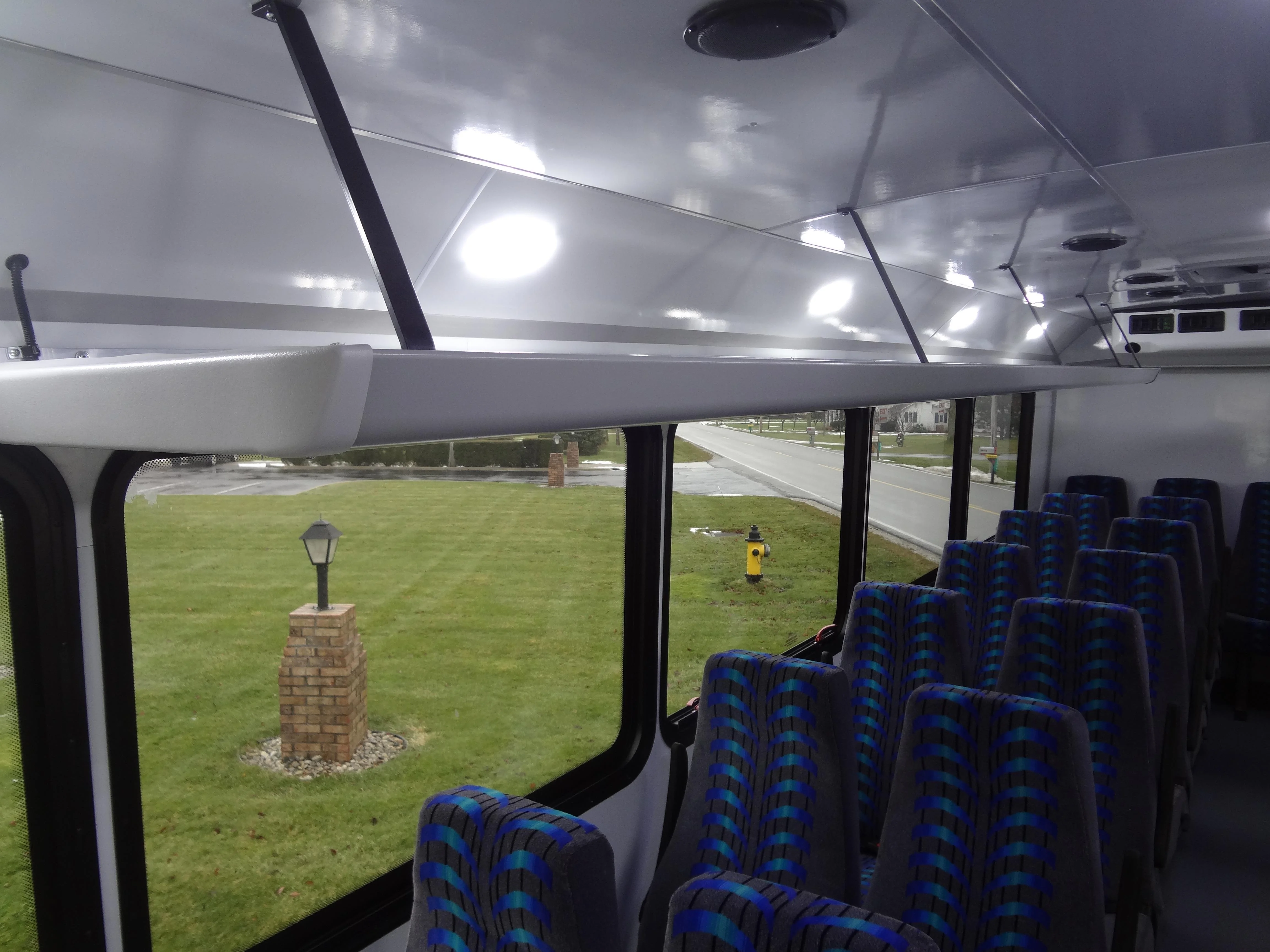

GL23206 14a

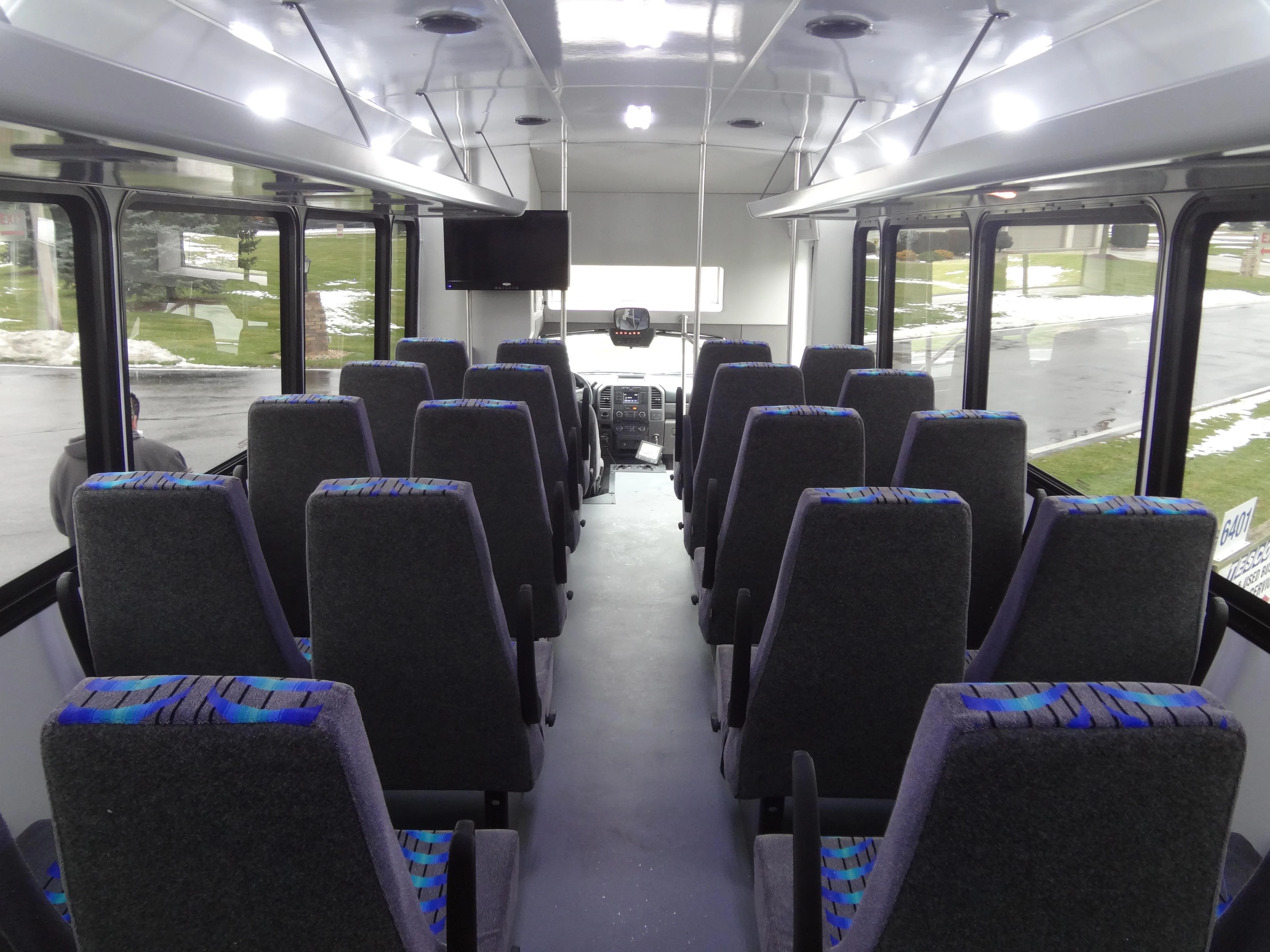

GL23206 15a

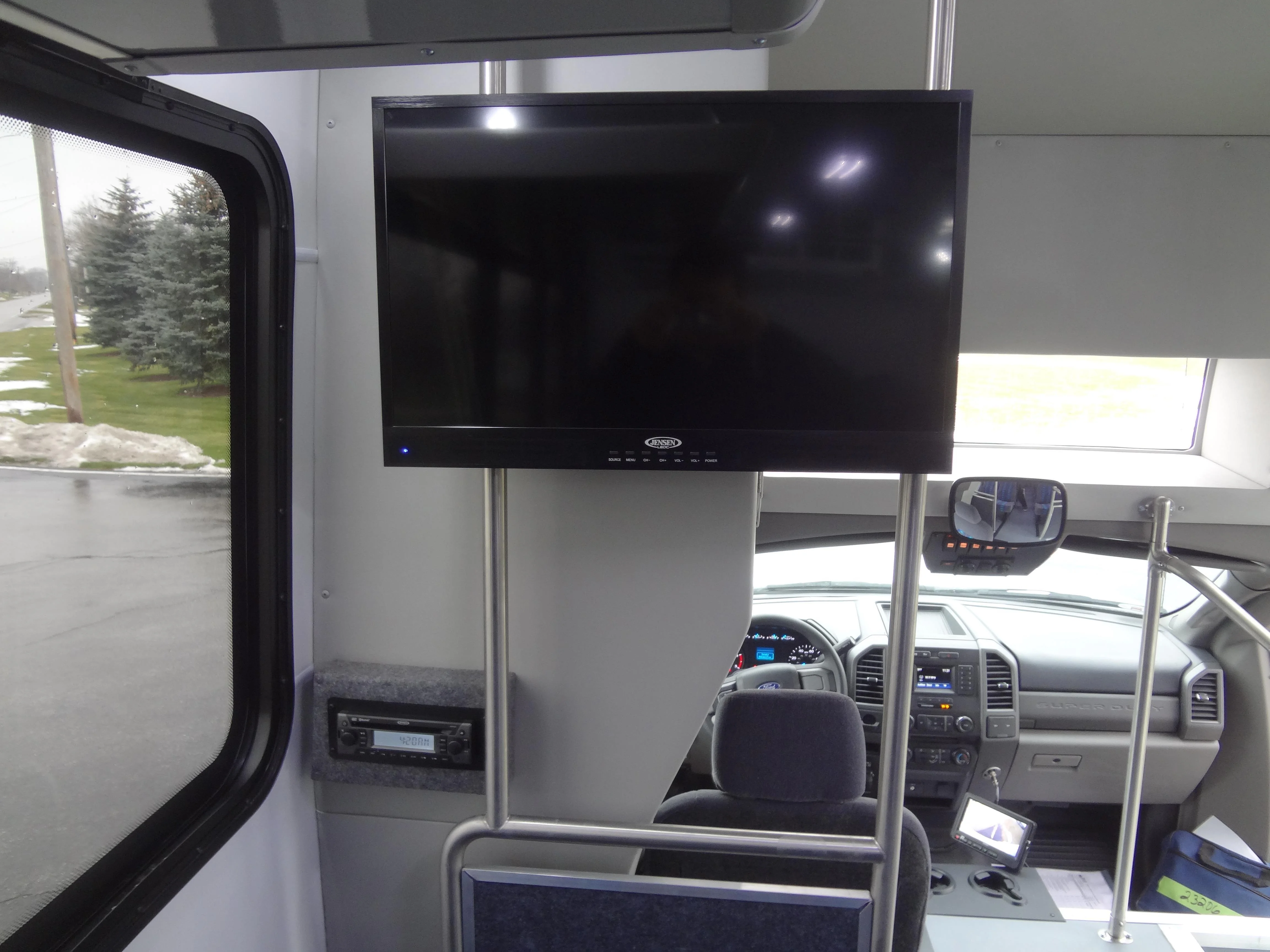

GL23206 16a

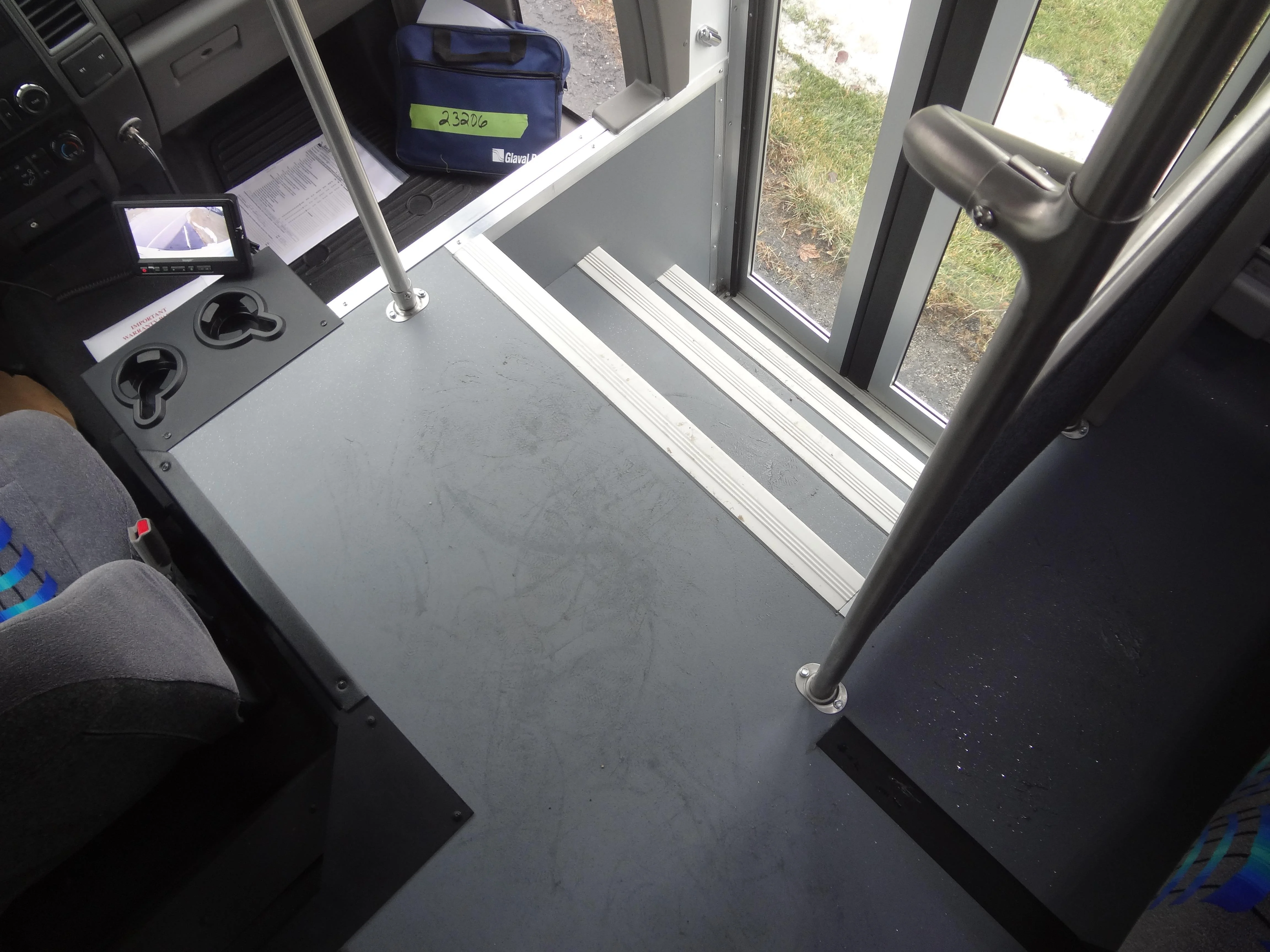

GL23206 17a

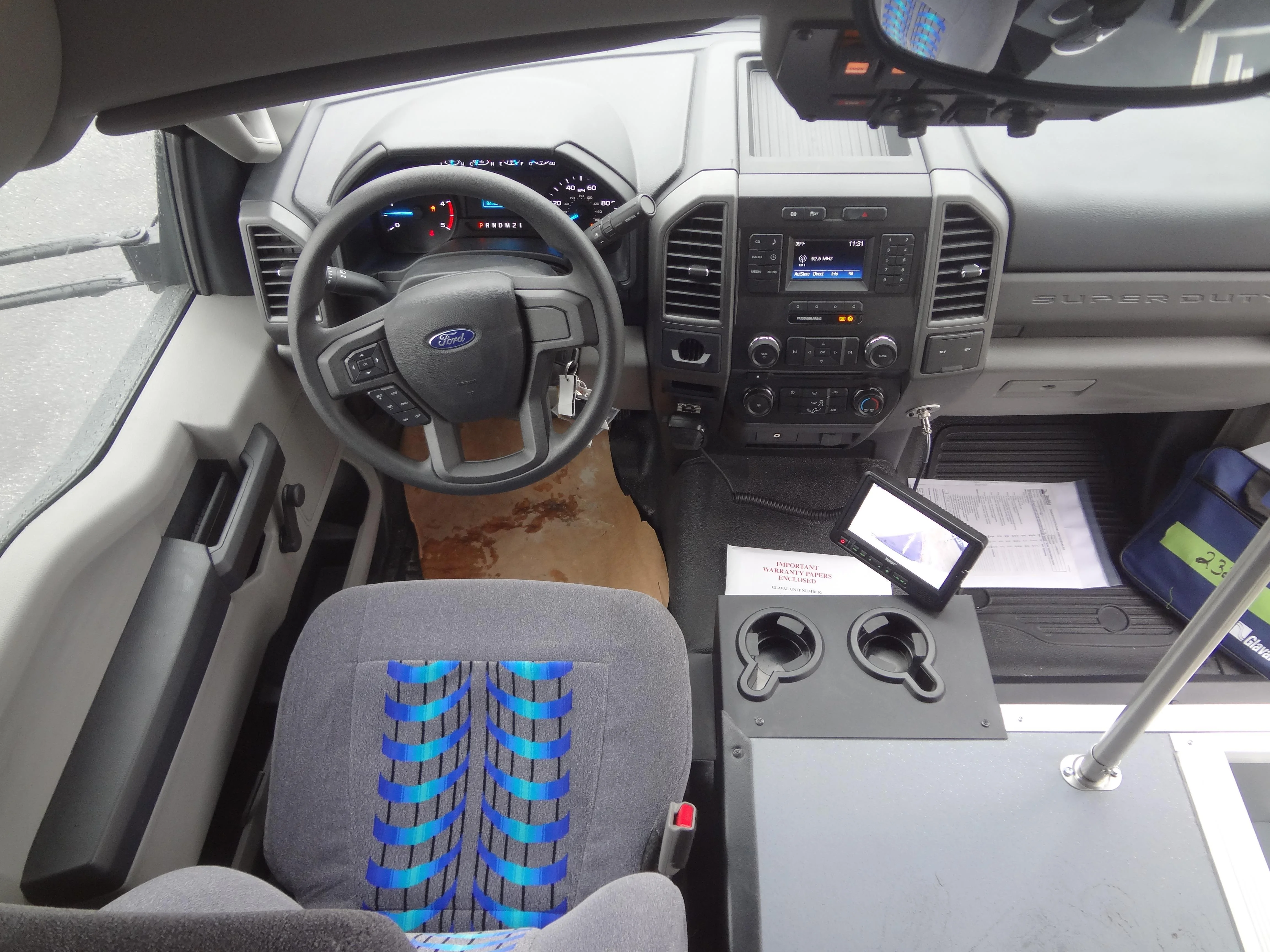

GL23206 18a

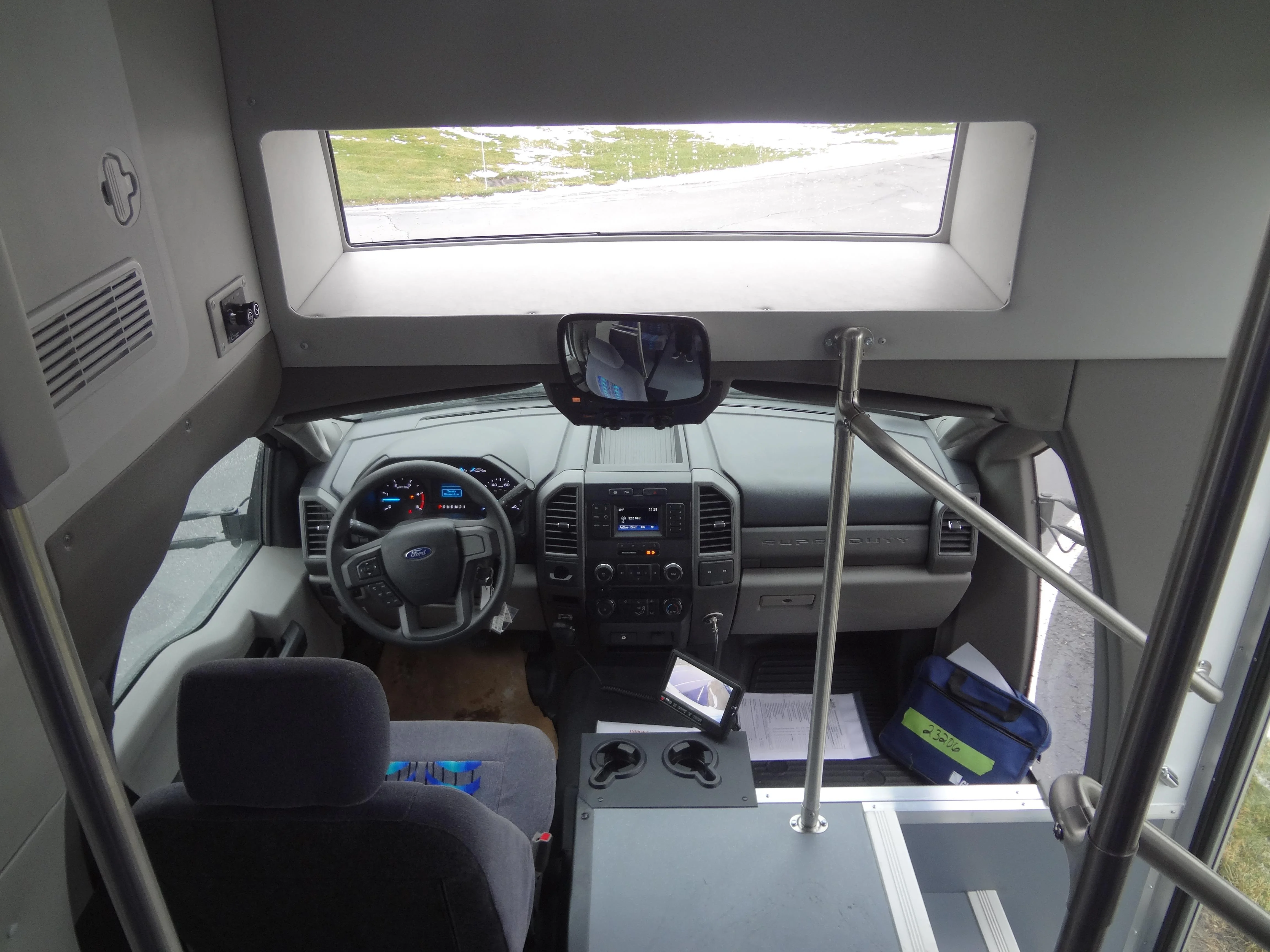

GL23206 19a

Glaval Entourage Floor Plans

14 pass 4 wc SM

20 pass 2 wc SM

24 pass 2 wc SM

24 pass SM

25 pass SM

26 pass 2 wc SM

28 pass SM

29 pass SM

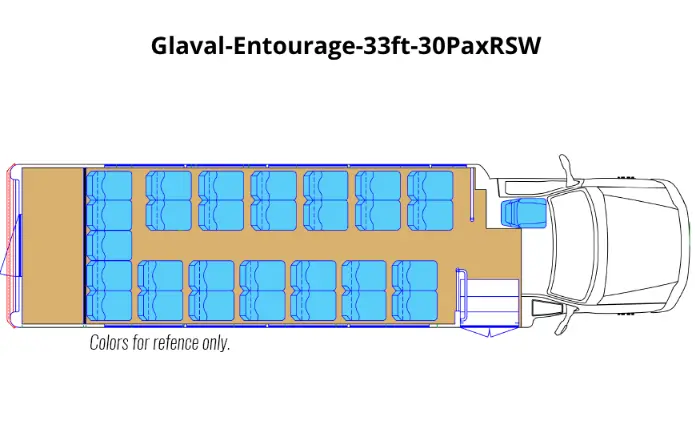

30 pass SM

32 pass SM

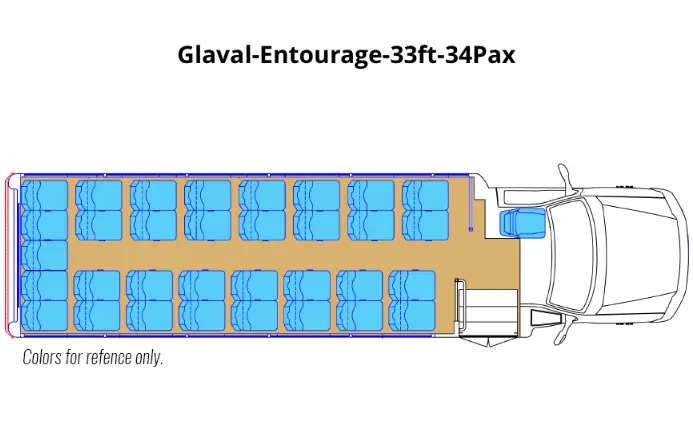

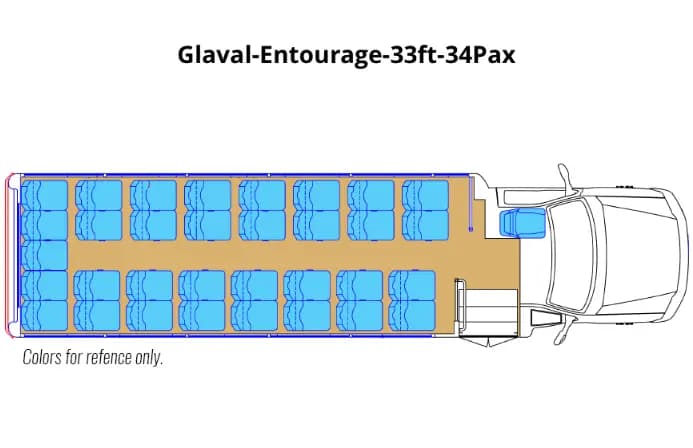

33 pass SM

6 pass 6 wc LG

Glaval Entourage Standard Conversion Features

• “Steel-Safe” Constructed Floor, Roof, and Sidewalls
• Galvanized Steel Floor Frame
• Galvanized Steel Stepwell
• Galvanized, All Structure
• 5/8” Treated Marine Grade Plywood Flooring
• Gray Koroseal Commercial Flooring w/Ribbed Aisle
• Cove Molding
• Vacuum Laminated Construction, Side and Rear
• Fiberglass Front Cap
• Fiberglass Composite Roof
• T-Slide Windows
• Full View Curb Window
• Electric Panel w/Diagnostic Fuses
• LED Stepwell Lights
• Vinyl Clad Lauan Ceiling & Interior Sidewalls
• Track Seating
• Flat Floor
• Curbside Entrance Modesty Panel & Stanchion
• Rear Center Brake Light (LED)
• Rear Mud Shield
• Steel Rear Bumper (Powder Coated)
• Window Drip Rails
• Rub Rails
• White Exterior
• Foamed In-Place Roof Insulation
• Front End Alignment (Toe-In, Toe Out)
• Under-Coating with Warranty
• Side Directional Lights (Incandescent)
• Driver’s Side Diamond Plate
• Cab Mounted Entry Step
• Electric Door, 30” w/Ext. Key Switch
• Side Mounted Rear View Mirrors (Manual)

5 year/100,000 mile limited conversion warranty. Specifications and options are subject to change without notice.

Glaval Entourage Chassis Specifications

• Engine:
  • Diesel: 6.7L Power Stroke V-8 Turbo; 390 HP; 735 lb-ft
  • Gasoline: 6.8L 3V SEFI V-10; 362 HP; 457 lb-ft
• G.V.W.R.: 19,500 lbs.
• Alternator:
  • Diesel: Dual Alternator 200 amp & 157 amp (357 amps combined)
  • Gasoline: Single Alternator 157 amp
• Fuel System:
  • Diesel: Dual Tanks: 40 Gallon and 28 Gallon (68 Gallons combined, includes switch on dash)
  • Gasoline: Single Tank: 40 Gallons
• Alternative Fuel (Diesel only): B-20 Capable CNG Option
• Transmission:
  • Diesel: Heavy Duty TorqShift 6-Speed Select Shift Automatic
  • Gasoline: TorqShift 5-Speed Automatic
• Parking Brake: Foot operated, Hand Release
• Wipers: Intermittent
• Battery:
  • Diesel: 2 Batteries 1500 CCA (750 each)
  • Gasoline: 2 Batteries 1300 CCA (650 each)
• Cruise Control: Standard
• High Idle: Standard
• Power Steering: Standard
• Wheels: Dual Rear Wheels (19.5”), Six, 10-Hole Disc, 19.5” x 6” RW Steel (Gray)
• Tires: Steel-Belted Radial, All-Season Tires, Continental BSW 225/70 R x 19.5G
• Headlamps: Halogen
• Engine Block Heater: Standard (diesel)
• Running Lights: Daytime
• Driver’s Air Bag: Standard
• Brakes: Front & Rear Disc
• Anti-Lock: 4-Wheel
• Traction Control: Engine Only
• Hill Start Assist: Standard
• Stereo: AM/FM/CD/MP3 w/Digital Clock and 8 speakers
• Bumper/Grill: Chrome
• Air: Automotive
• Tow Hooks: Front
• Driver’s Seat: OEM HD Vinyl, Manual
• Exhaust:
  • Diesel: Roadside Routed, Aluminized Steel
  • Gasoline: Curbside Routed, Aluminized Steel

Glaval Entourage Specifications

• Chassis: Ford F-550 Super Duty
• Wheelbase: 201-, 228-, and 252-inches
• Front Axle Rating: 7,000
• Rear Axle Rating: 14,760
• Overall Length (Bumper to Bumper): 27-, 29-, 31-, 32-, and 33-ft.
• Overall Width: 96”
• Overall Height: 120” (excludes escape hatch or roof A/C)
• Front Overhang: 37-3/8”
• Interior Height: 78”
• Interior Width: 92”
• Floor Height from Ground: 42-1/2”
• Aisle Width: 18”
• Clear Door Opening: 30”
• Ground to First Step: 10-1/4”
• Step Riser: 9-5/8”
• Step Tread: 10”
• Step Width: 34”

Glaval Entourage Paratransit Options

• ADA Lighting (Lift and Door)
• ADA Signs
• Double Doors (Lift)
• Belt Storage Box
• Interlock System
