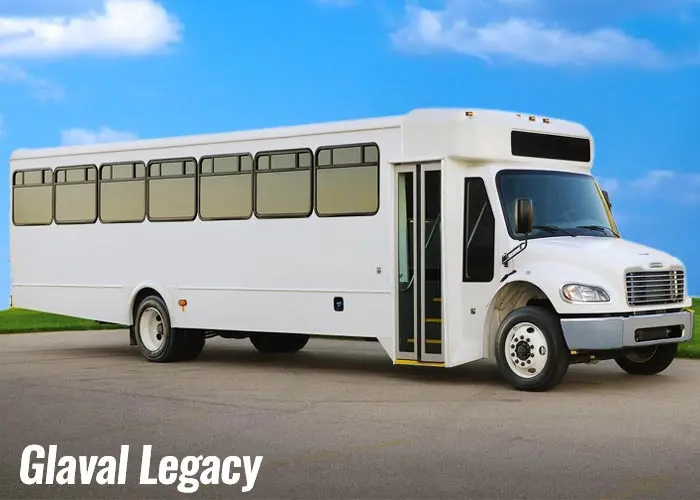

Glaval Legacy

Glaval Legacy

The Glaval Legacy, powered by the renowned Cummins 6.7L diesel engine and mounted on the durable Freightliner S2C chassis, offers an exceptional solution for transit and charter companies. With the capacity to accommodate up to 45 passengers, including the driver, this bus combines robust “Steel-Safe” construction with a refined travel experience, making it a standout choice for organizations seeking reliability and comfort.

Designed with versatility in mind, the Glaval Legacy can be equipped with ADA-compliant wheelchair lifts and stations, catering to organizations with special needs passengers. Whether your fleet requires full ambulatory seating or accessible configurations, this bus meets the most demanding applications with its aerodynamic design, enhanced visibility, and superior engineering. At US Bus Connect, we pride ourselves on offering this premium bus to enhance your operations—contact us today at (833) 855-2332.

Glaval Legacy Images

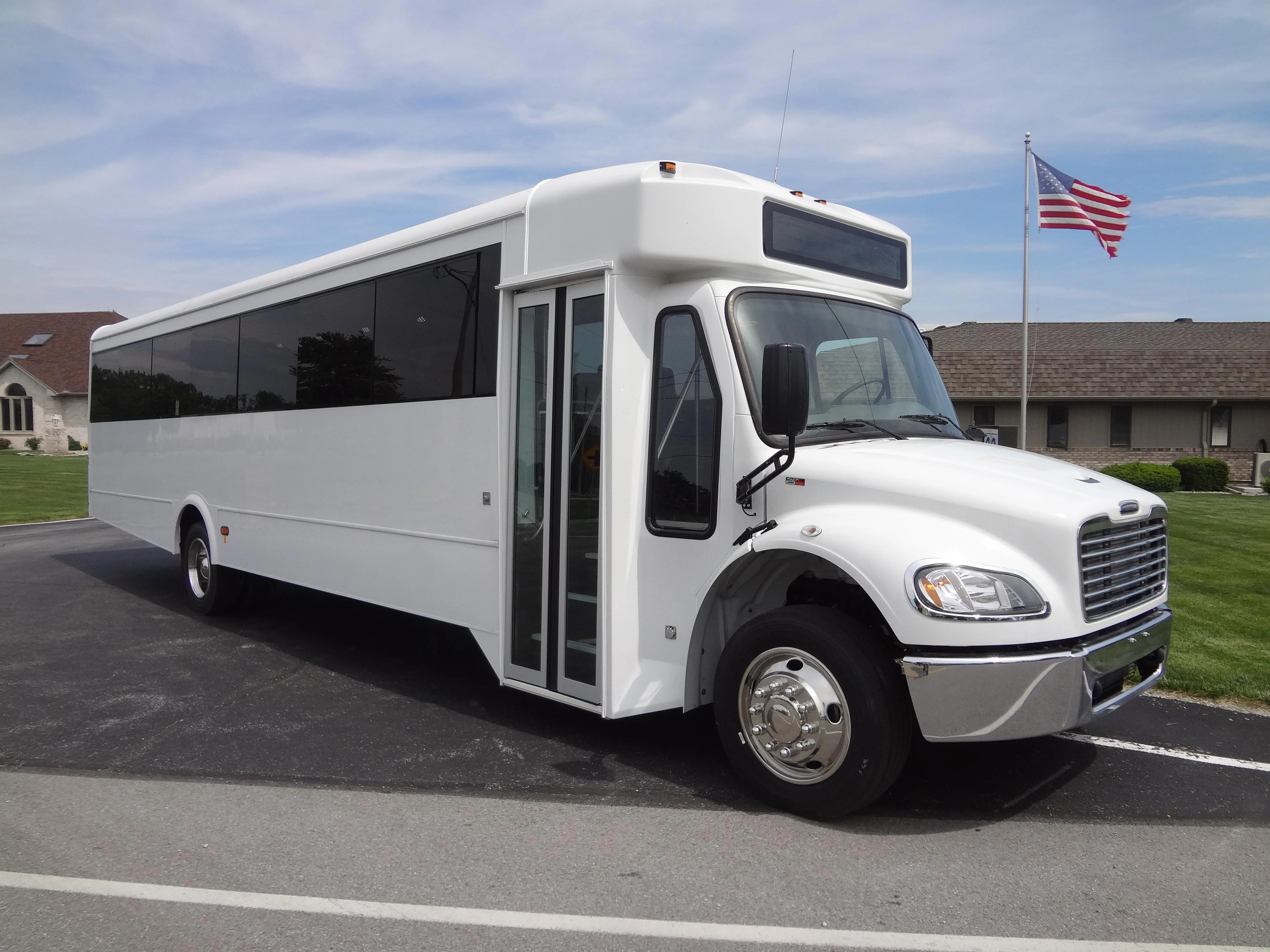

GL21854 1a

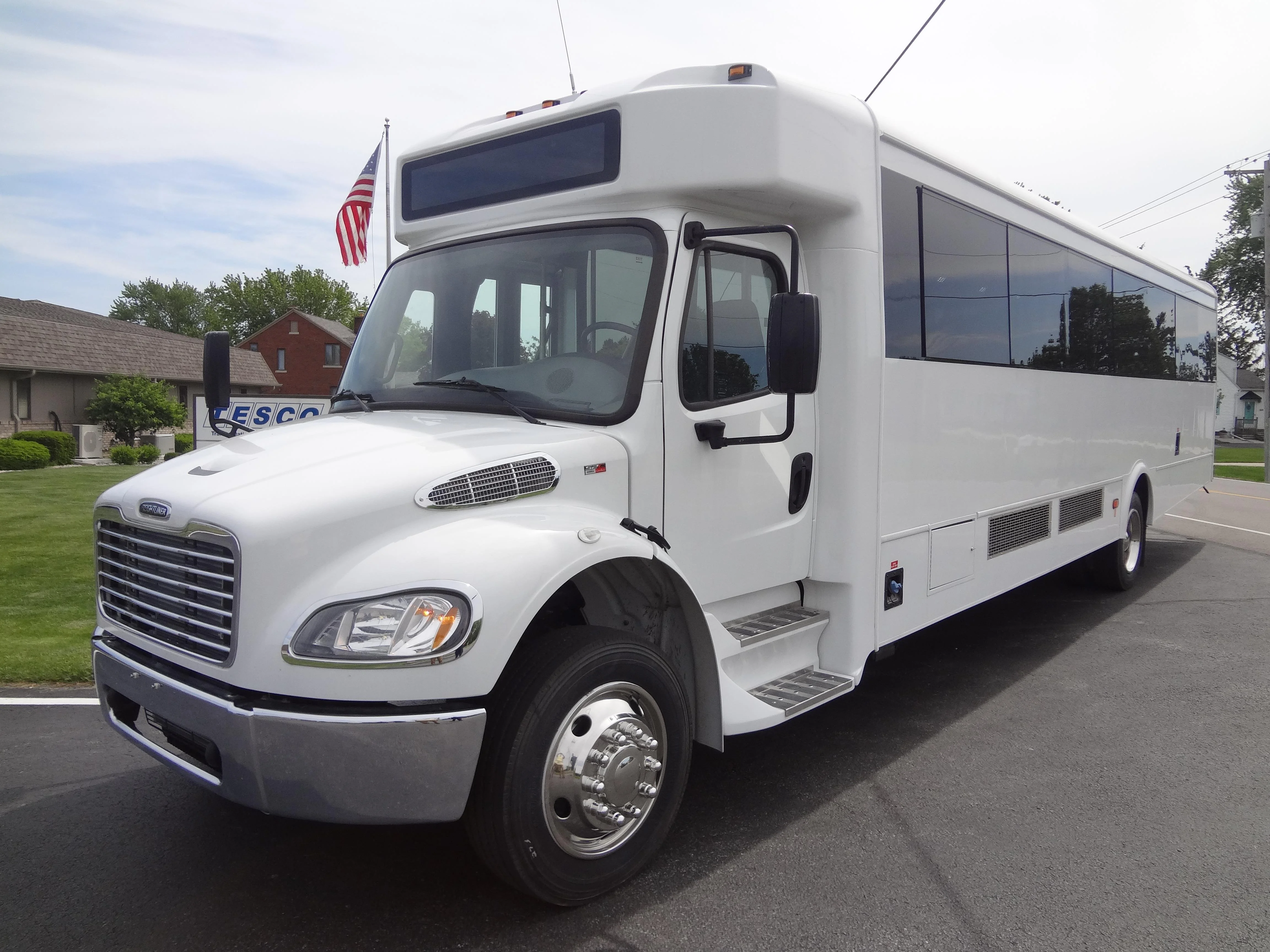

GL21854 2a

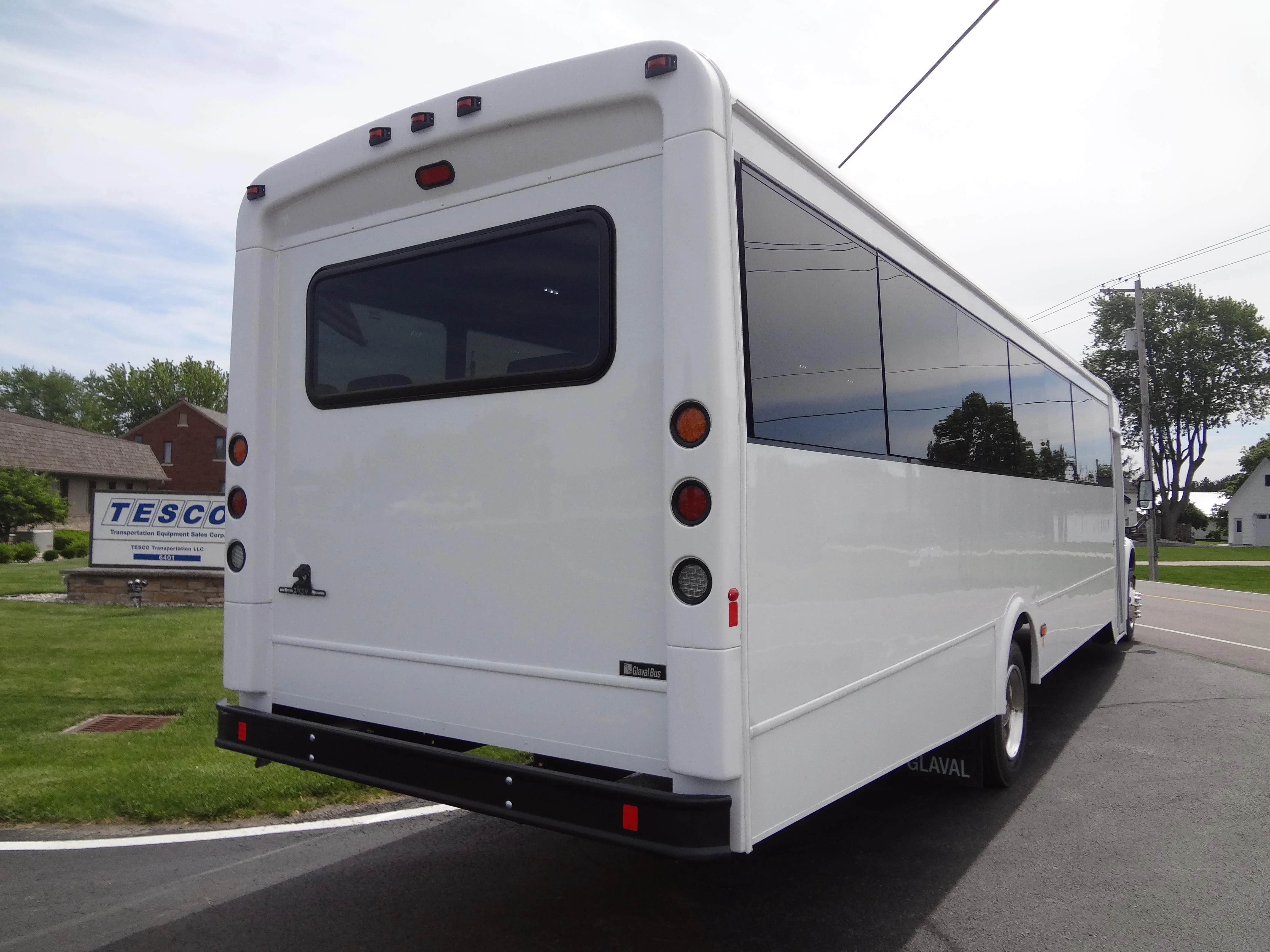

GL21854 3a

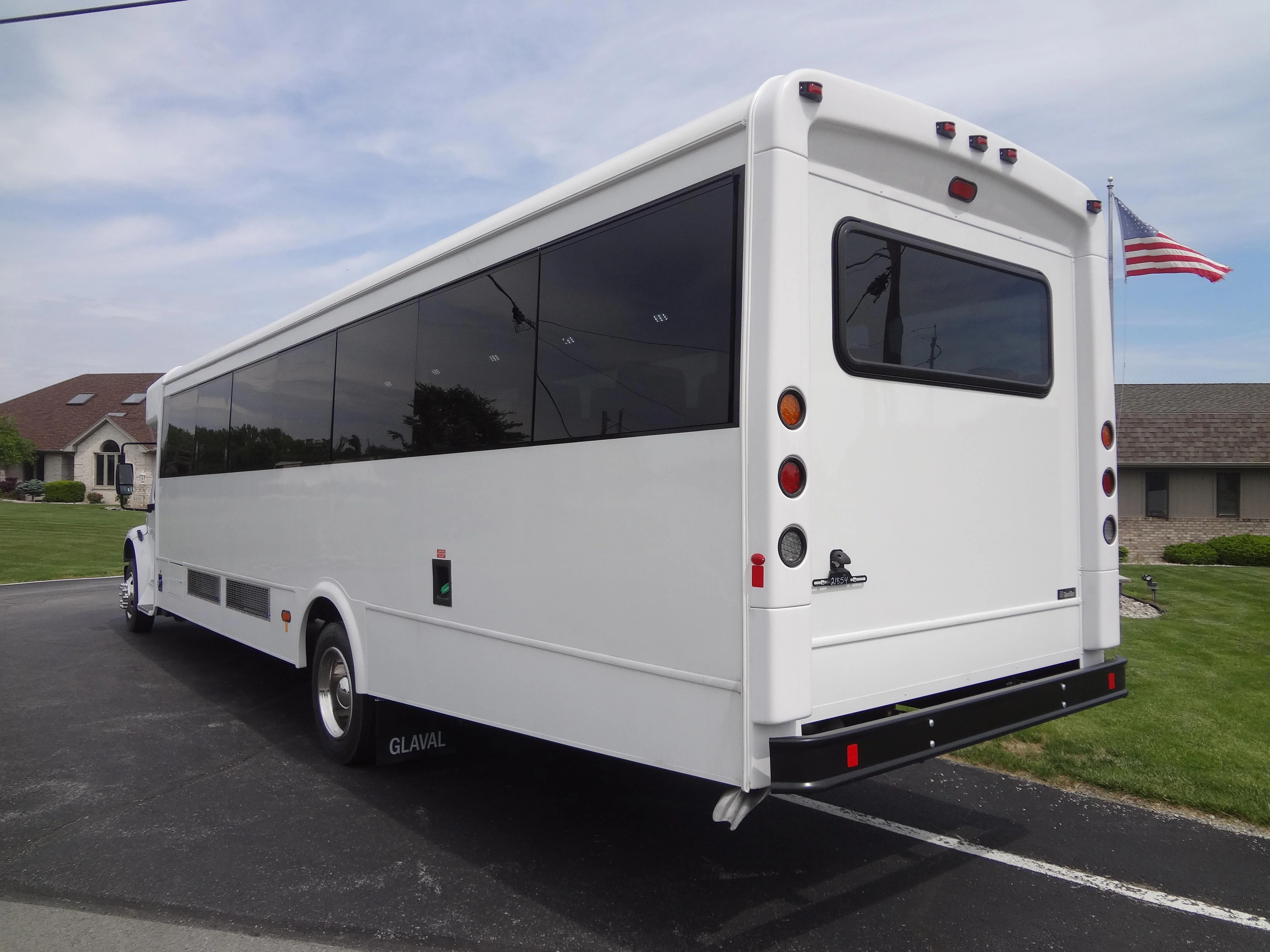

GL21854 4a

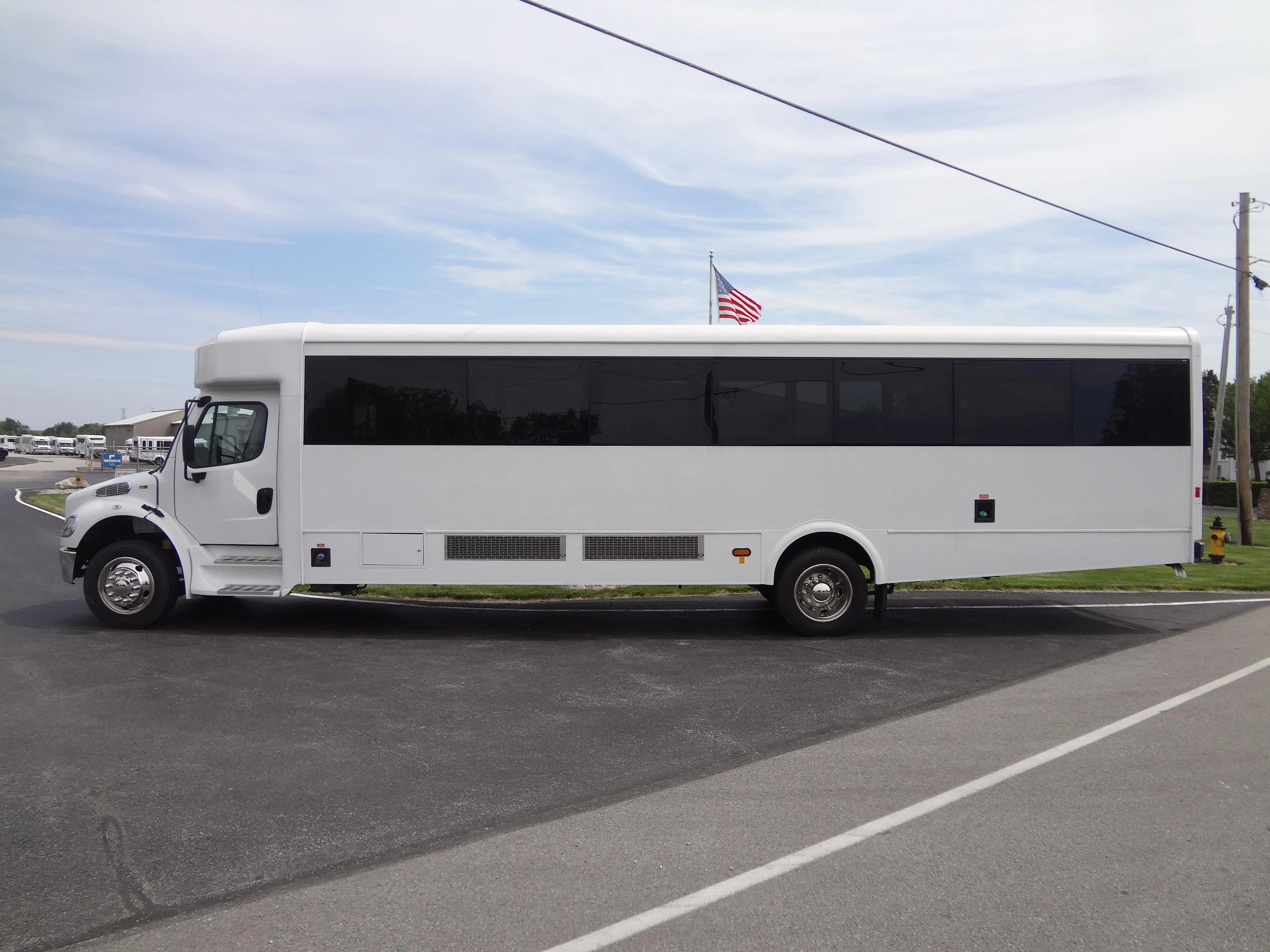

GL21854 5a

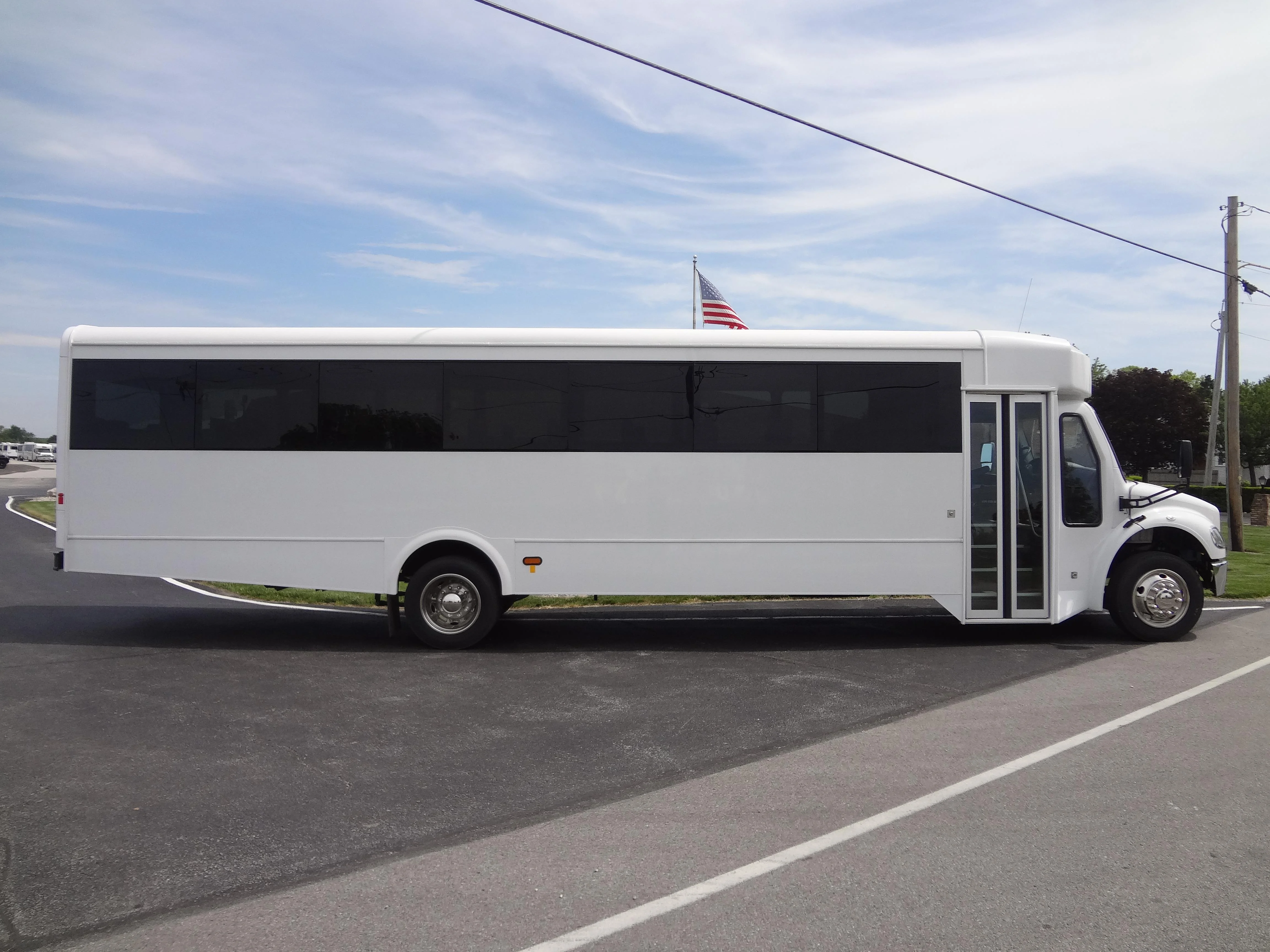

GL21854 6a

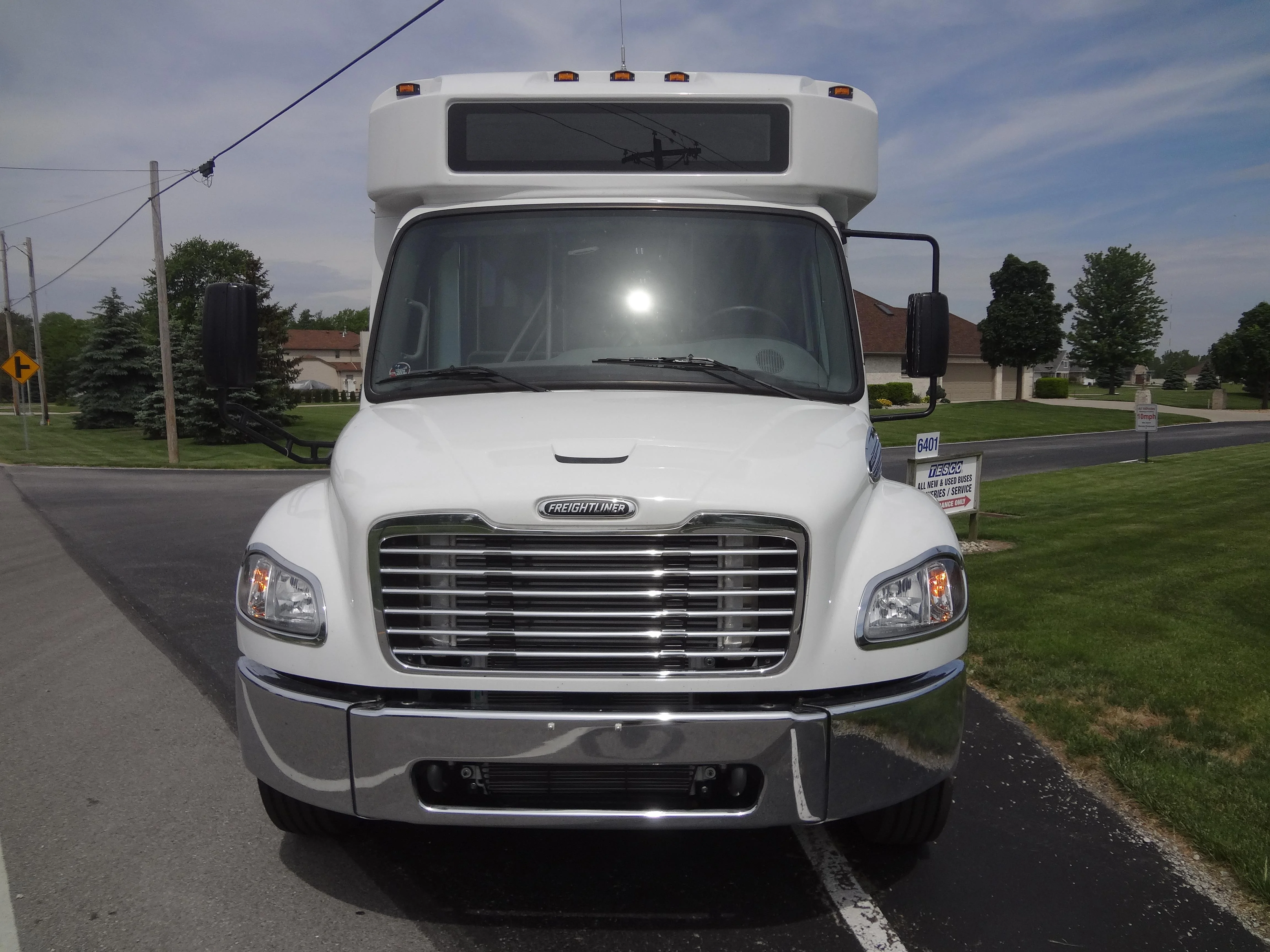

GL21854 7a

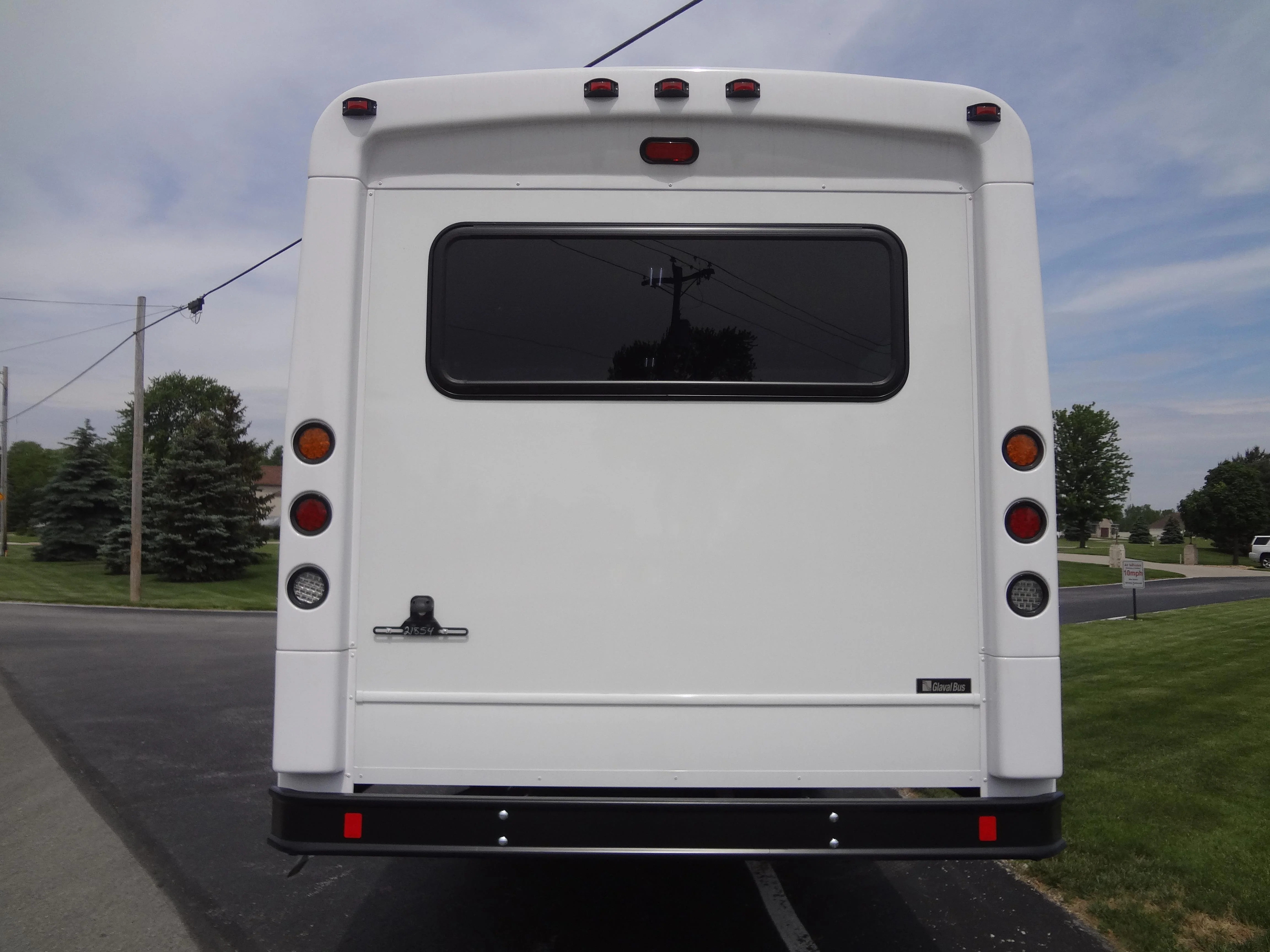

GL21854 8a

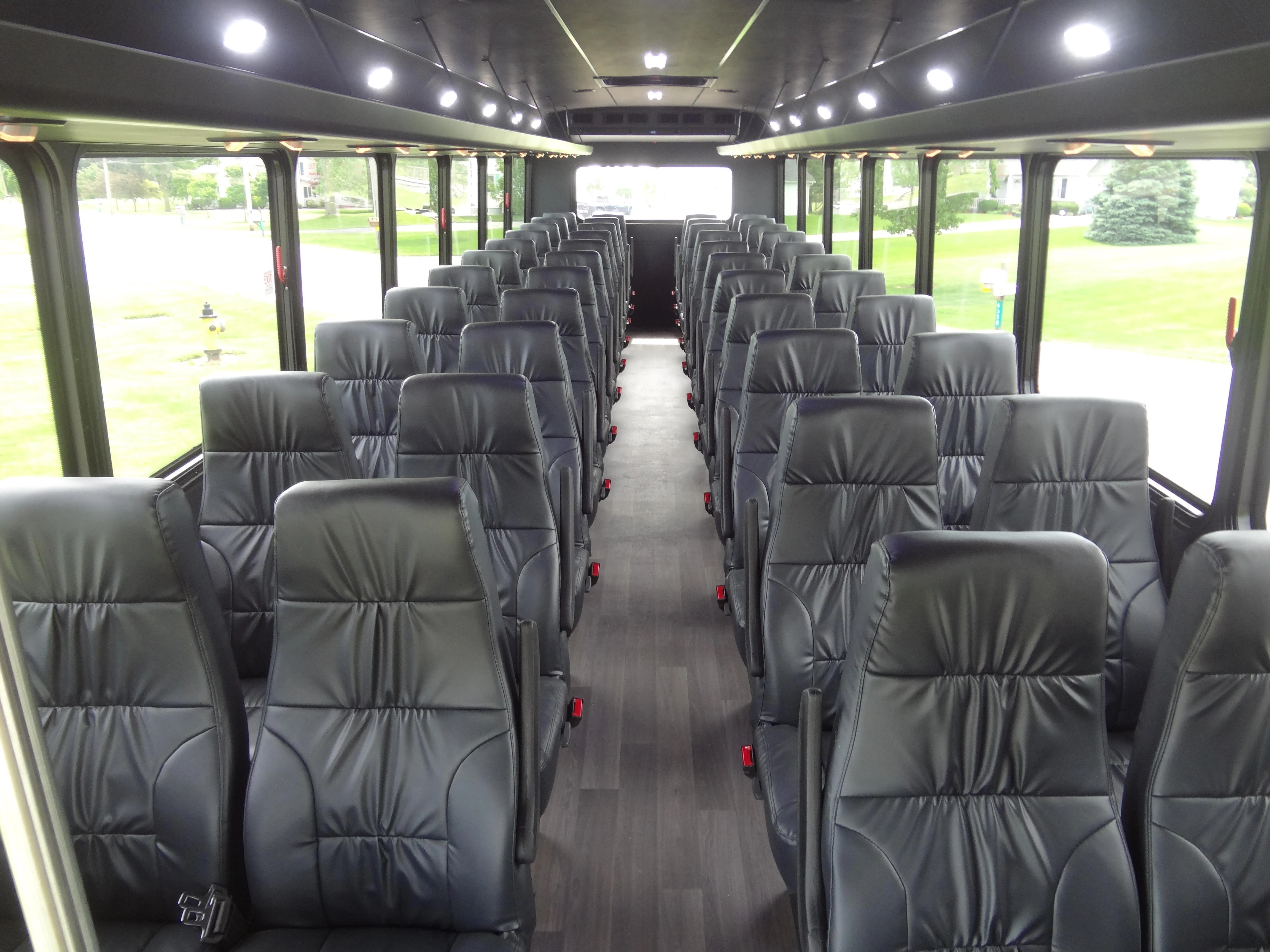

GL21854 9a

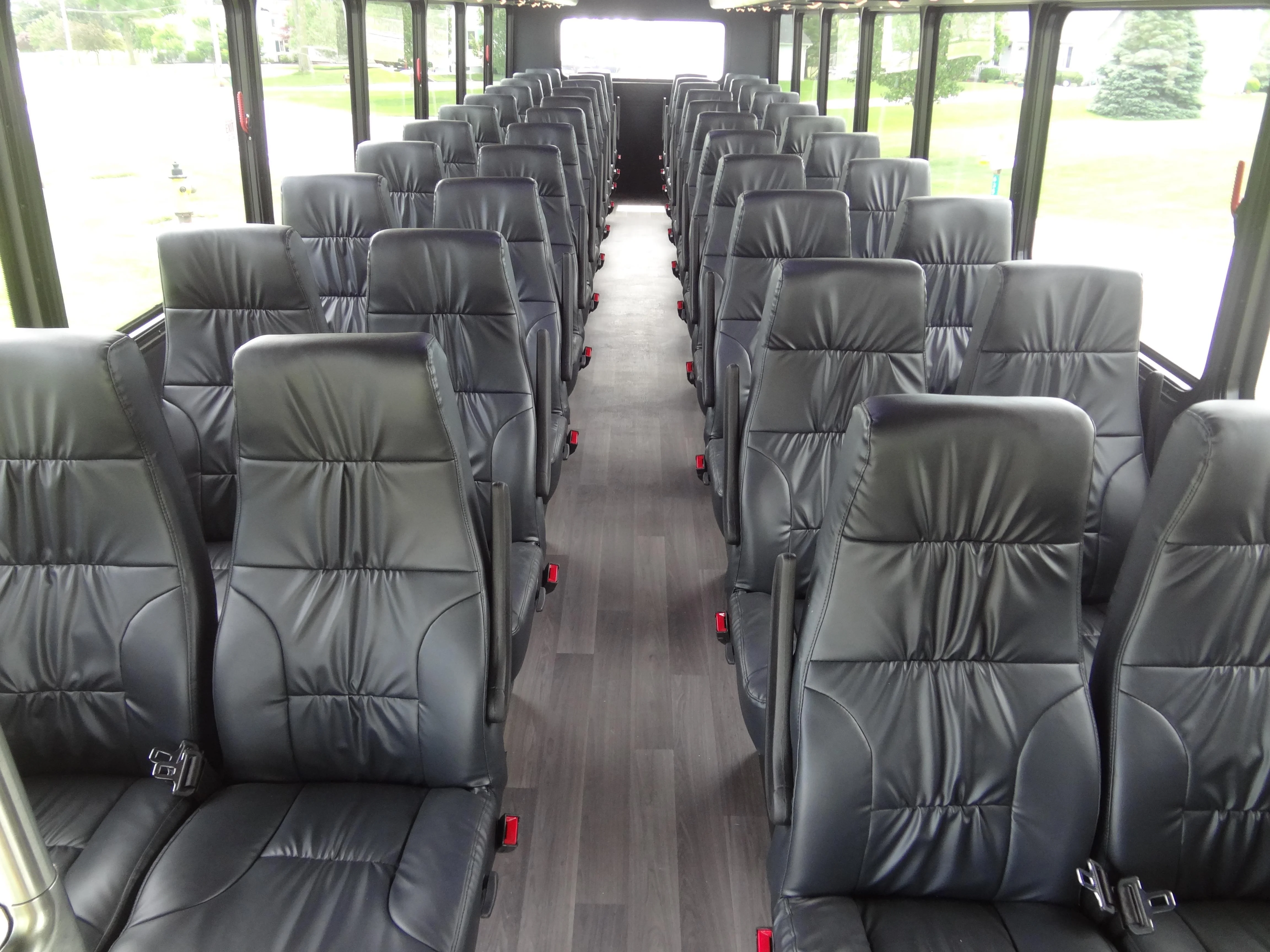

GL21854 10a

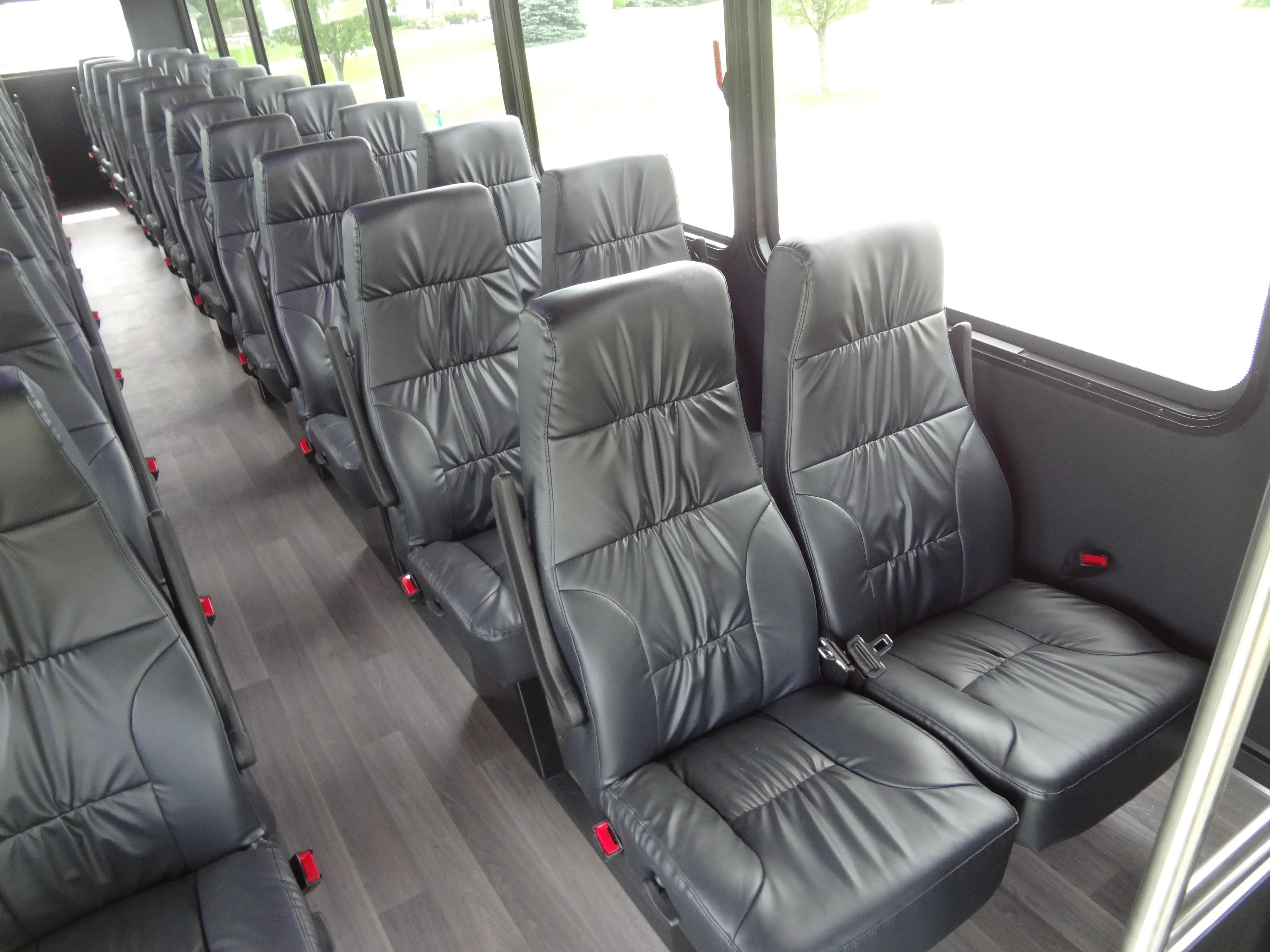

GL21854 11a

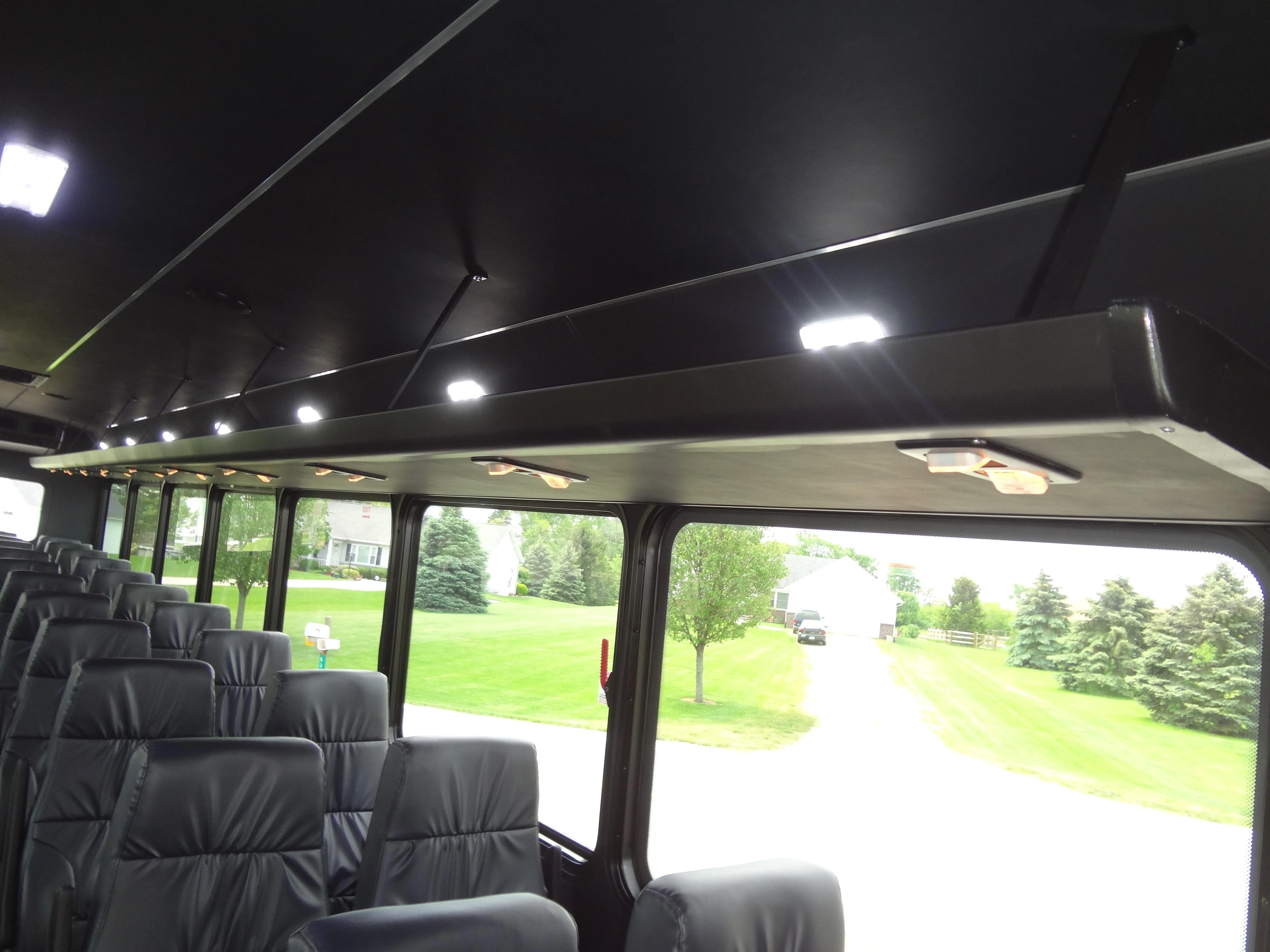

GL21854 12a

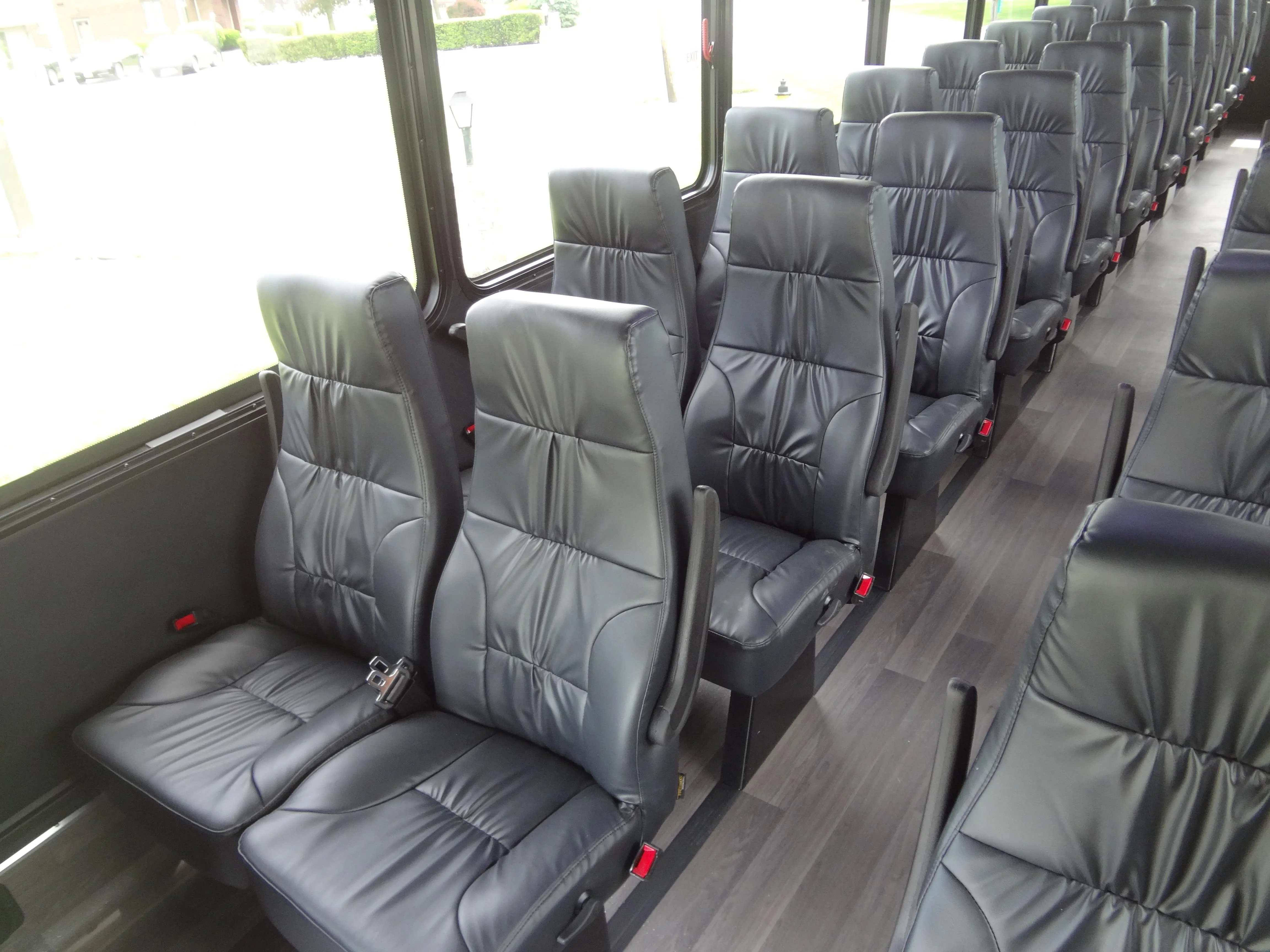

GL21854 13a

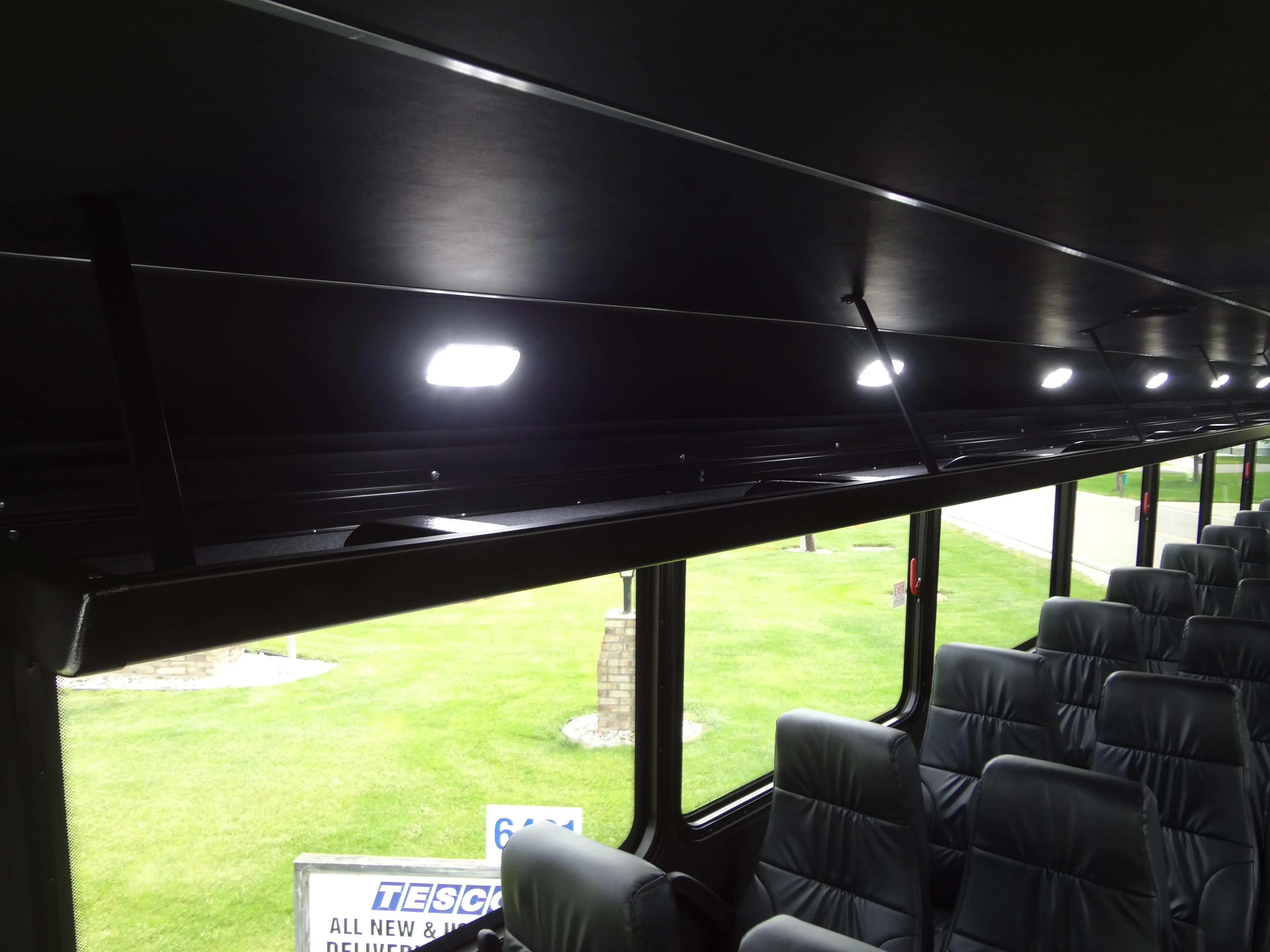

GL21854 14a

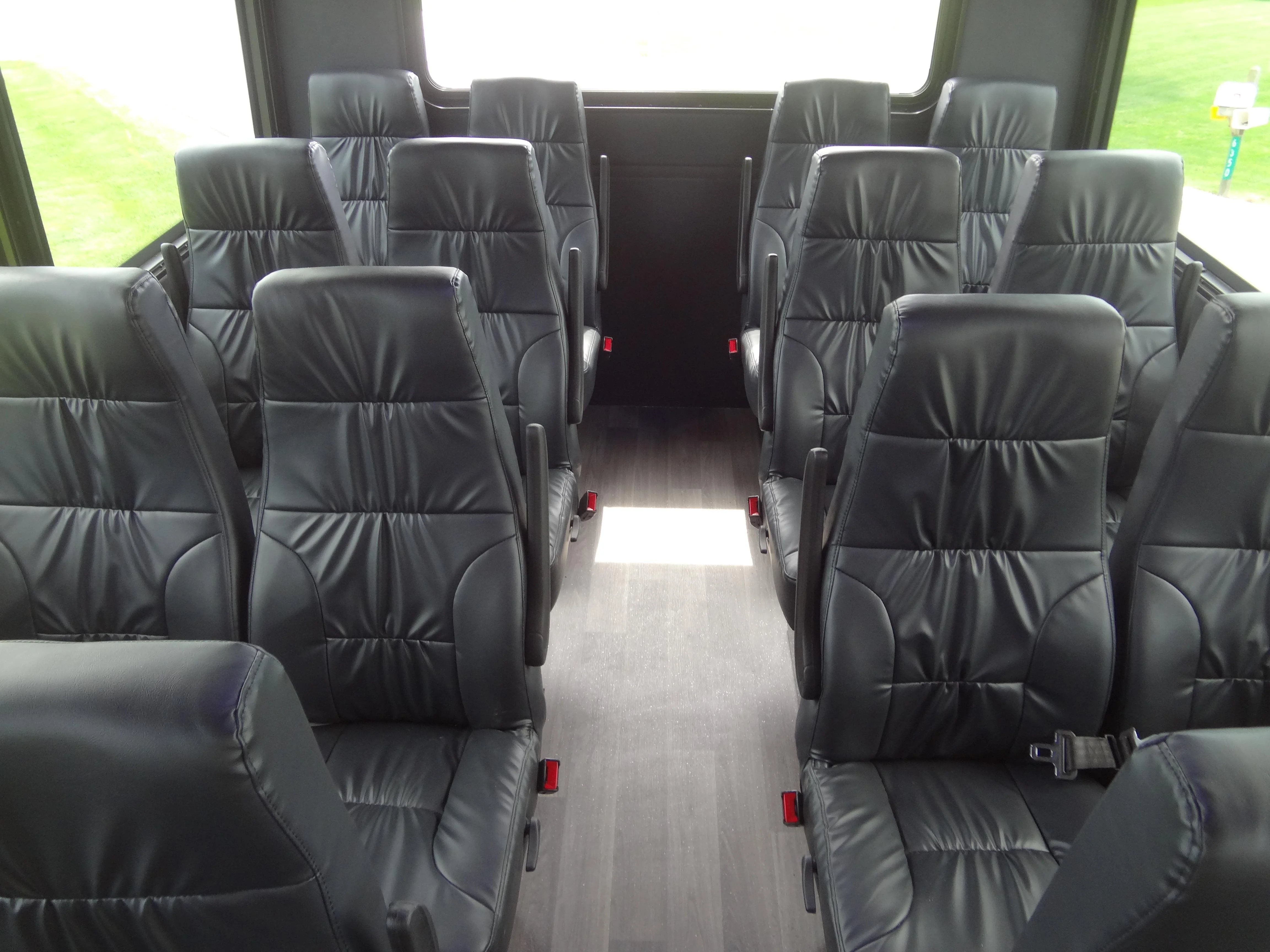

GL21854 15a

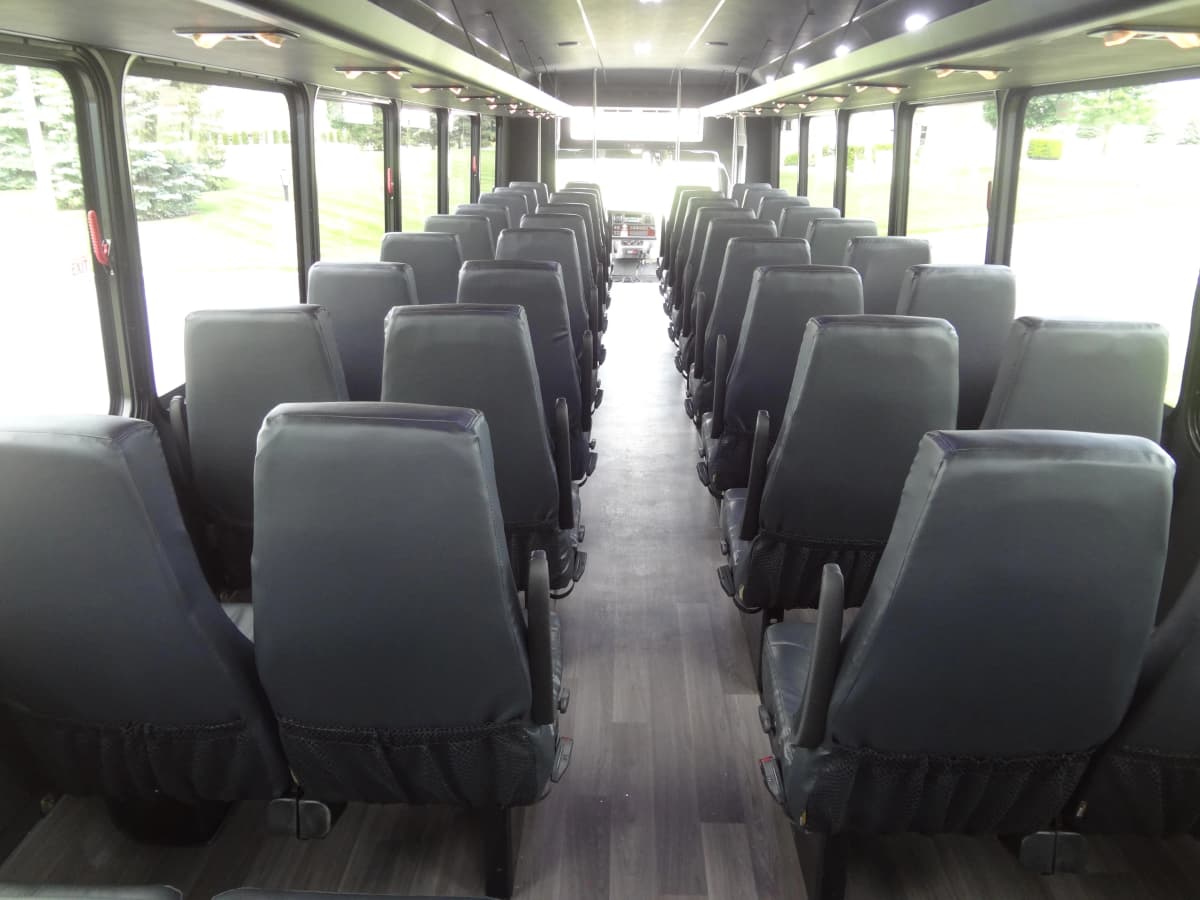

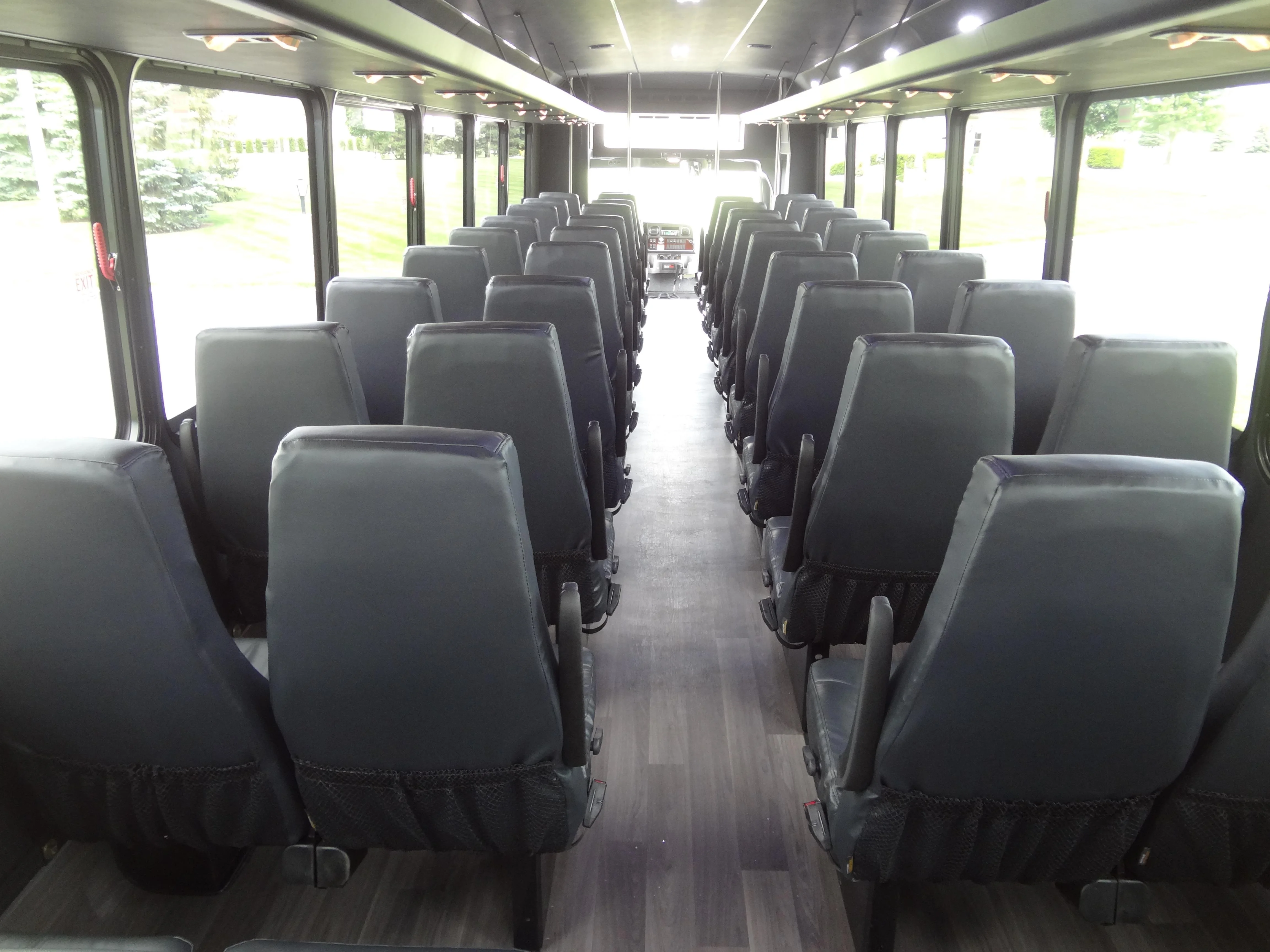

GL21854 16a

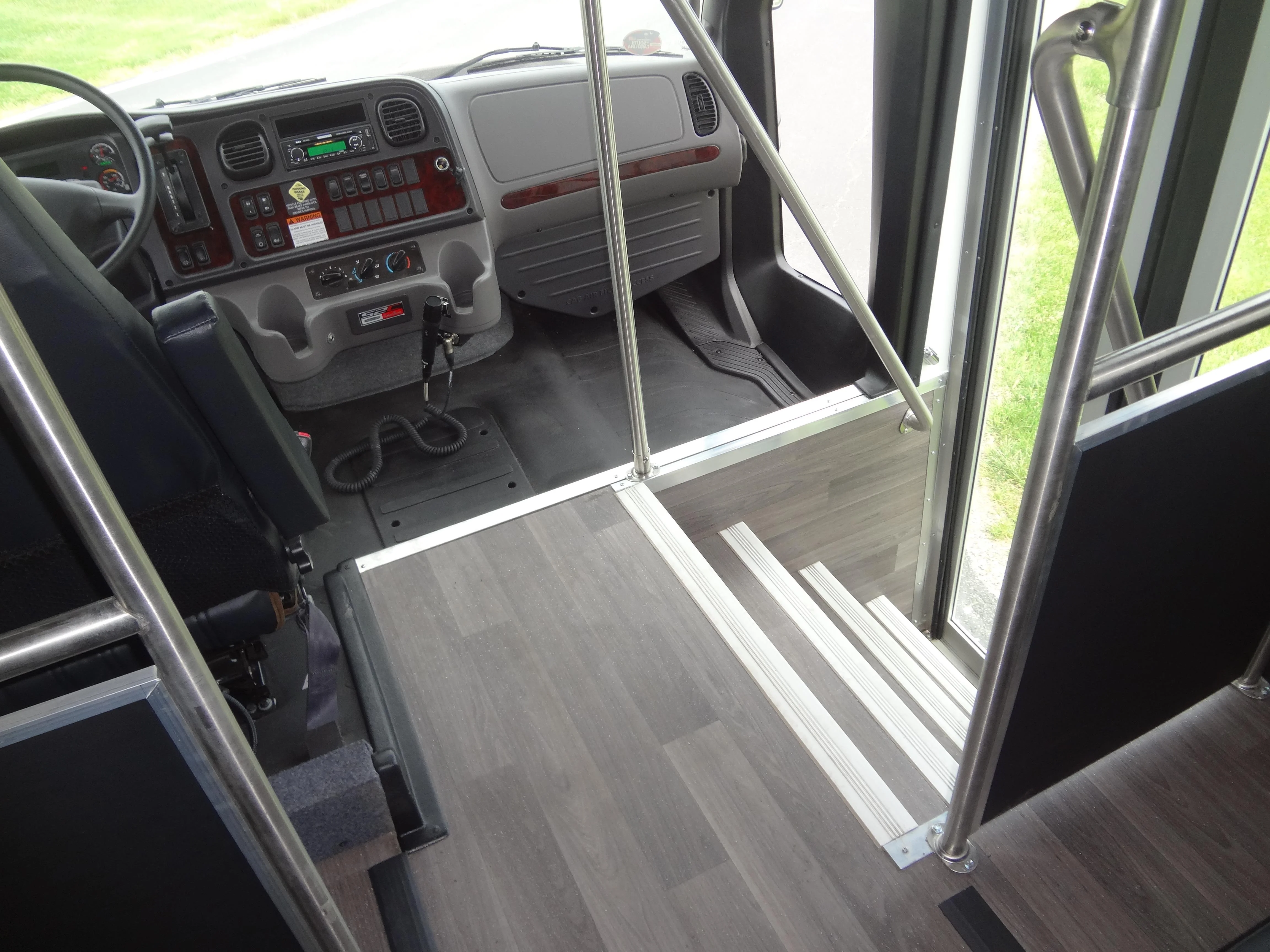

GL21854 17a

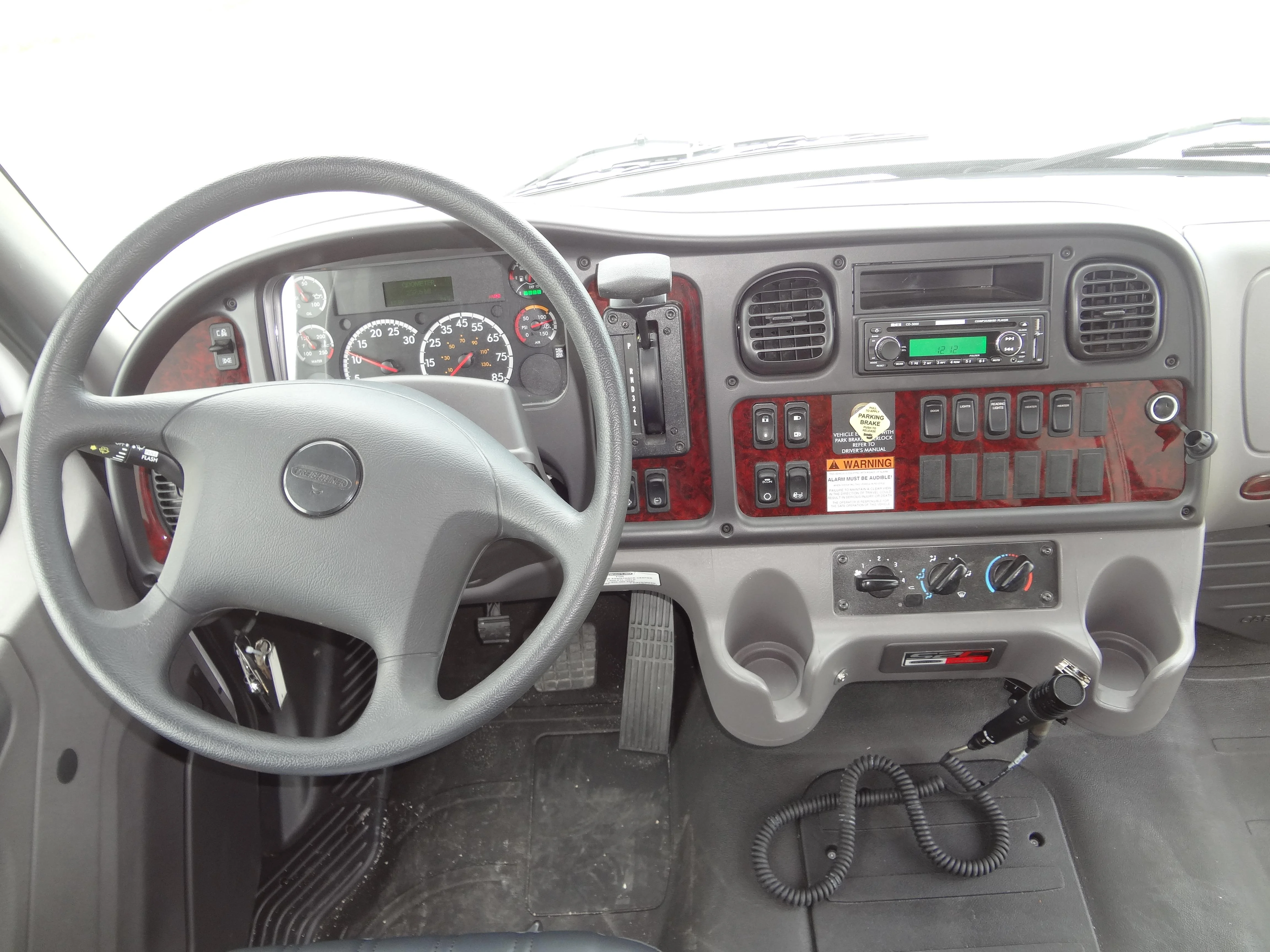

GL21854 18a

Glaval Legacy Floor Plans

14 pass 4 wc SM

20 pass 2 wc SM

24 pass 2 wc SM

24 pass SM

25 pass SM

26 pass 2 wc SM

28 pass SM

29 pass SM

30 pass SM

32 pass SM

33 pass SM

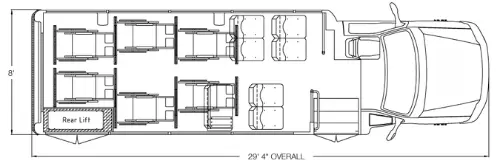

6 pass 6 wc LG

Glaval Legacy Chassis Specifications

• Chassis: Freightliner S2C
• Engine: Cummins 6.7L V8 Diesel
• Engine Rating: 240 hp; 560 lb-ft
• G.V.W.R.: 26,000 lbs
• Alternator: 320 Amp
• Fuel System: 65 gal or 100 gal depending on wheelbase and luggage
• Alternate Fuel: B-20 “BioDiesel” capable
• Transmission: Allison 2200 PTS w/ Park Pawl 5 Speed
• Parking Brake: Air-operated w/push and pull knob on dash
• Wipers: Intermittent single wiper motor
• Battery: 2 Batteries 1900 CCA total
• Cruise Control: Standard electronic
• Fast Idle: Standard
• Steering: Adjustable tilt/telescoping
• Wheels: Dual rear wheels 22.5”, six 10-hole disc, 22.5” x 7.5” RW steel painted white
• Tires: Michelin XZE 235/80R 22.5 14 ply
• Stereo: Optional
• Tow Hooks: Front frame mounted
• Driver’s Seat: Bostrom Talladega 910 highback Air Suspension
• DEF Tank: 10 gal
• Rear Axle Ratio: 5.13 to 1
• Air System: DV-2 Autodrain valve w/ heater
• Front Axle Rating: 10,000 lb
• Front Spring: 10,000 lb Tape Leaf
• Rear Axle Rating: 19,000 lb
• Rear Spring: 21,000 lb Air-Ride Air Liner
• Door Handles/Locks: Manual
• Aux Power: In dash 12-Volt
• Front Bumper: OEM Chrome
• Windshield Washer: Reservoir 1 Gallon under hood

Glaval Legacy Model Specifications

• Wheelbase: 219”/259”/279”
• Overall Length: 32’/35’/37’/40’ (Bumper to Bumper)
• Overall Width: 96”
• Overall Height: Approximately 129” (Excludes Escape Hatch or Roof A/C)
• Front Overhang: 41-3/8”
• Interior Height: 78-1/2”
• Interior Width: 92”
• Interior Floor Height From Ground: 46-1/2”
• Aisle Width: 18”
• Clear Door Opening: 30”
• Ground to First Step: 11”
• Step Riser: 9”
• Step Tread: 9”
• Step Width: 34”

Glaval Legacy Standard Conversion Features

• “Steel-Safe” Constructed Floor, Roof, and Sidewalls
• Galvanized Steel Floor Frame
• Galvanized Steel Stepwell
• Galvanized, All Structure
• 5/8” Treated Plywood Flooring
• Gray Koroseal Commercial Flooring w/Ribbed Aisle Cove Molding
• Vacuum Laminated Construction, Side and Rear
• Fiberglass Front Cap
• 5-Piece ABS Rear Cap
• Fiberglass Composite Roof
• T-Slide Windows
• Full View Curb Window
• Electric Panel w/Diagnostic Fuses
• LED Stepwell Lights
• Exterior Heated Remote Mirrors
• Flat Floor
• Vinyl Clad Lauan Ceiling & Interior Sidewalls Full Track Seating
• Curbside Entrance Modesty Panel & Stanchion
• Rear Center Brake Light (LED)
• Rear Mud Shield
• Steel Rear Bumper (Powder Coated)
• Window Drip Rails
• White Exterior
• Foamed In-Place Roof Insulation
• Front End Alignment (Toe-In, Toe Out)
• Under-Coating with Warranty
• 30” Electric Door
• All Exterior Lighting (LED)
• OEM Battery Box w/Slide-Out Tray

Backed by a 5-year/100,000-mile limited conversion warranty, the Glaval Legacy ensures long-term reliability. Specifications and options are subject to change without notice.

Glaval Legacy Paratransit Options

• ADA Lighting (Lift and Door)
• ADA Signs
• Double Doors (Lift)
• Belt Storage Box
• Interlock System
• Padding Kit
• Surelok/Qstraint Tiedowns
• Lift Package, Braun
• Lift Package, Maxon
• Lift Package, Ricon

The Lift Package includes: Single Door; Lift; Park Interlock; ADA Signs; Door Activated Lift and Entrance Lighting, Rear Exhaust (Rear or Roadside Exhaust Required on Rear Lift Models).
